Multiband professional antenna
TETRA (380: 430MHz) + GPS + GSM + UMTS + LTE
MA-5202

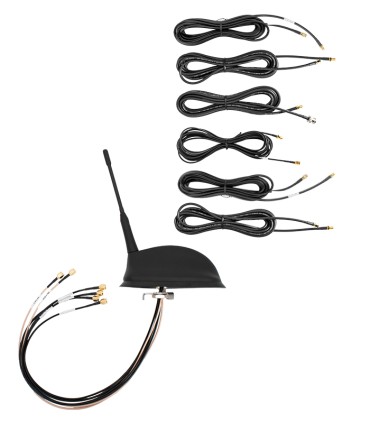

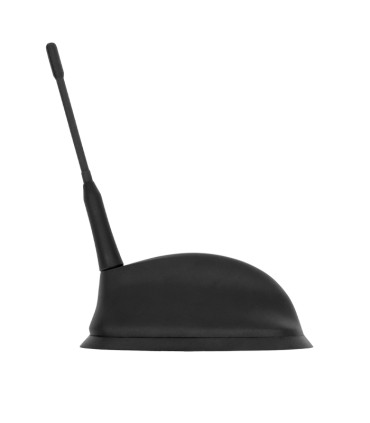

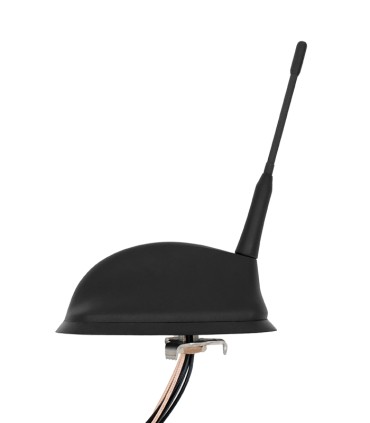

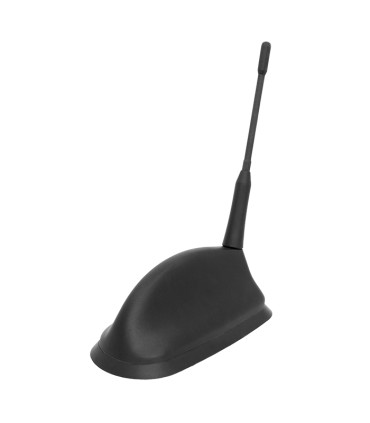

Combined Mobile Antenna: 4 x LTE/5G, 1 x WLAN-WiFi 2.4/5.8GHz + 1 x TETRA
Combined mobile antenna: 4 x LTE/5G, 1 x WLAN-WiFi 2.4/5.8GHz + 1 x TETRA
Add to compare0
Add to wishlist
Specifications
Base Material - Material de base |
Aluminium alloy EN AW-6082 |
Radome |
PA6 Black 30% glass fiber |
Dimension - Dimensión |
L: 140 · W: 62 · H: 52 mm |
Colour - Color |
Black - Negro |
Temperature - Temperatura |
-40ºC / +80ºC |
Weight - Peso |
330gr +/- 10gr |
Squared |
15x15 |
Round |
Ø19 |
Technical Data 4xLTE/5G
Frequency Range - Rango de Frecuencia |
AMPS/GSM 850 : 824-894 MHz
|
Impedance - Impedancia |
50 Ω |
Polarization - Polarización |
Vertical |
Emission - Emisión |
Omnidirectional |
Gain - Ganancia |
2 dBi - 890 MHz
|
Cable length - Longitud del Cable |
5m |
Connector - Conector |
SMA m. |
Technical Data 1xWLAN/WIFI
Frequency Range - Rango de Frecuencia |
2400-2485 MHz
|
Impedance - Impedancia |
50 Ω |
Polarization - Polarización |
Vertical |
Emission - Emisión |
Omnidirectional |
Gain - Ganancia |
4 dBi - 2400 MHz
|
Cable length - Longitud del Cable |
5m |
Connector - Conector |
RP-SMA |
Technical Data TETRA
Antenna Type - Tipo de antena |
1/41 Mobile Antenna |
Frequency Range - Rango de Frecuencia |
380 ÷470 MHz |
Impedance - Impedancia |
50 Ω |
Max. Power - Potencia Máxima |
20 W |
V.S.W.R |
Less than 2.0 |
Polarization - Polarización |
Vertical |
Emission - Emisión |
Omnidirectional |
Gain - Ganancia |
2.14 dB |
Rod length - Longitud de varilla |
131±3mm |
Rod elevation - Ángulo de varilla |
74º |
Cable length - Longitud del Cable |
5m |
Connector - Conector |
BNC m. |
