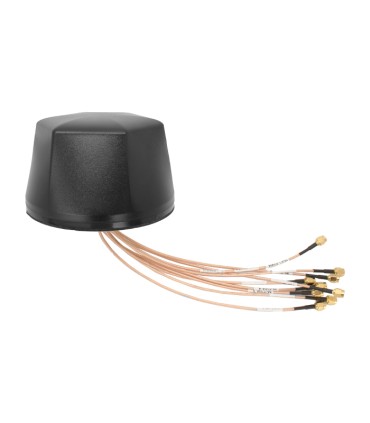

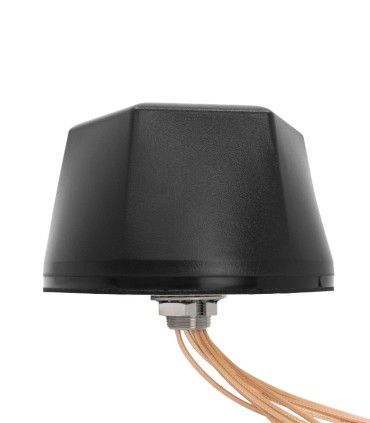

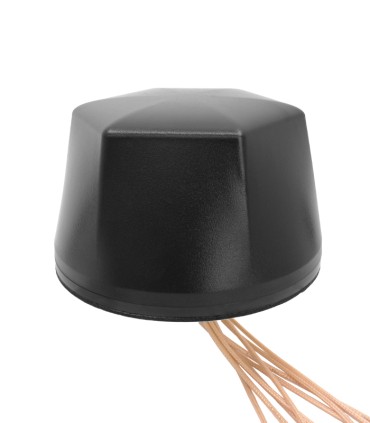

MIMO Antenna 4x 2G/3G/4G/5G + 4x WiFi + 1x GPS-GNSS-GALILEO

Material

PA6

Color

Black

Height

80 mm

Diameter

140 mm

Temperature

-35°C to 80°C

Antenna type

Active Planar Patch

Impedance

50 Ω

Frequency

1580 ± 28 MHz

V.S.W.R

Less than 2

Polarization

RHCP

Gain

1 dBi

Supply voltage

2.7 ÷ 5.1 V

Current consumption

13 ± 2 mA at 3.0 V

Gain amplifier

26 ± 3 dB at 3.0 V

Noise figure

< 1.5 dB

Cable length

RG316 ER118 20mm, >5m extension cable

Connector

SMA m.

Frequency

2400 ÷ 2485 MHz

5250 ÷ 5850 MHz

Impedance

50 Ω

V.S.W.R

Less than 3

Gain

2400 ÷ 2485 MHz 8 dBi

5250 ÷ 5850 MHz 9 dBi

Polarization

Vertical

Cable length

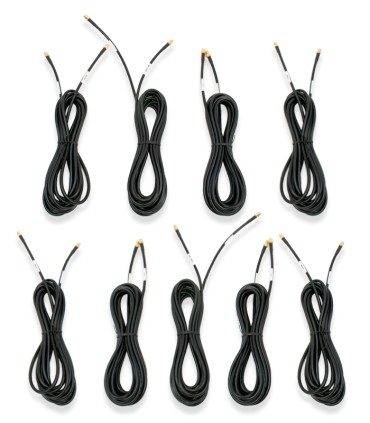

RG316 ER118 200mm,

5m extension cable

Connector

RP-SMA. male

Frequency

<690 ÷ 960 MHz

1427 ÷ 1518 MHz

1710 ÷ 2200 MHz

2300 ÷ 2690 MHz

3300 ÷ 4200 MHz

Impedance

50 Ω

V.S.W.R

Less than 3

Emission

Omnidirectional

Gain

690/960 MHz 2 dBi

1427/1518 MHz 3 dBi

1710/2200 MHz 4 dBi

2300/2690 MHz 5 dBi

3300/4200 MHz 5 dBi

Polarization

Vertical

Cable length

RG316 ER118 200mm,

5m extension cable

Connector

>SMA m.
