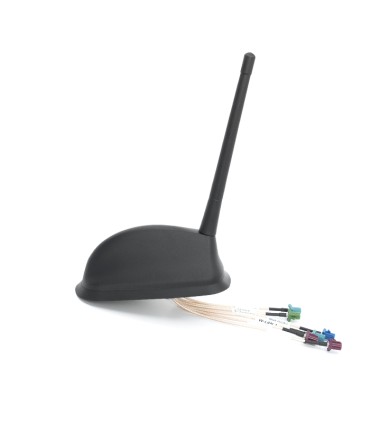

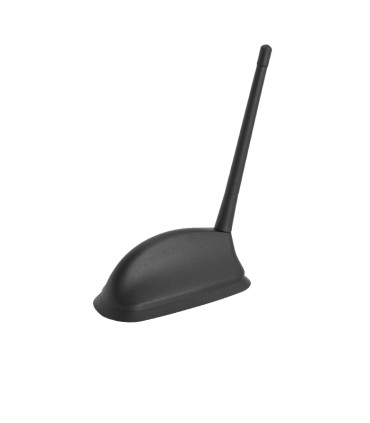

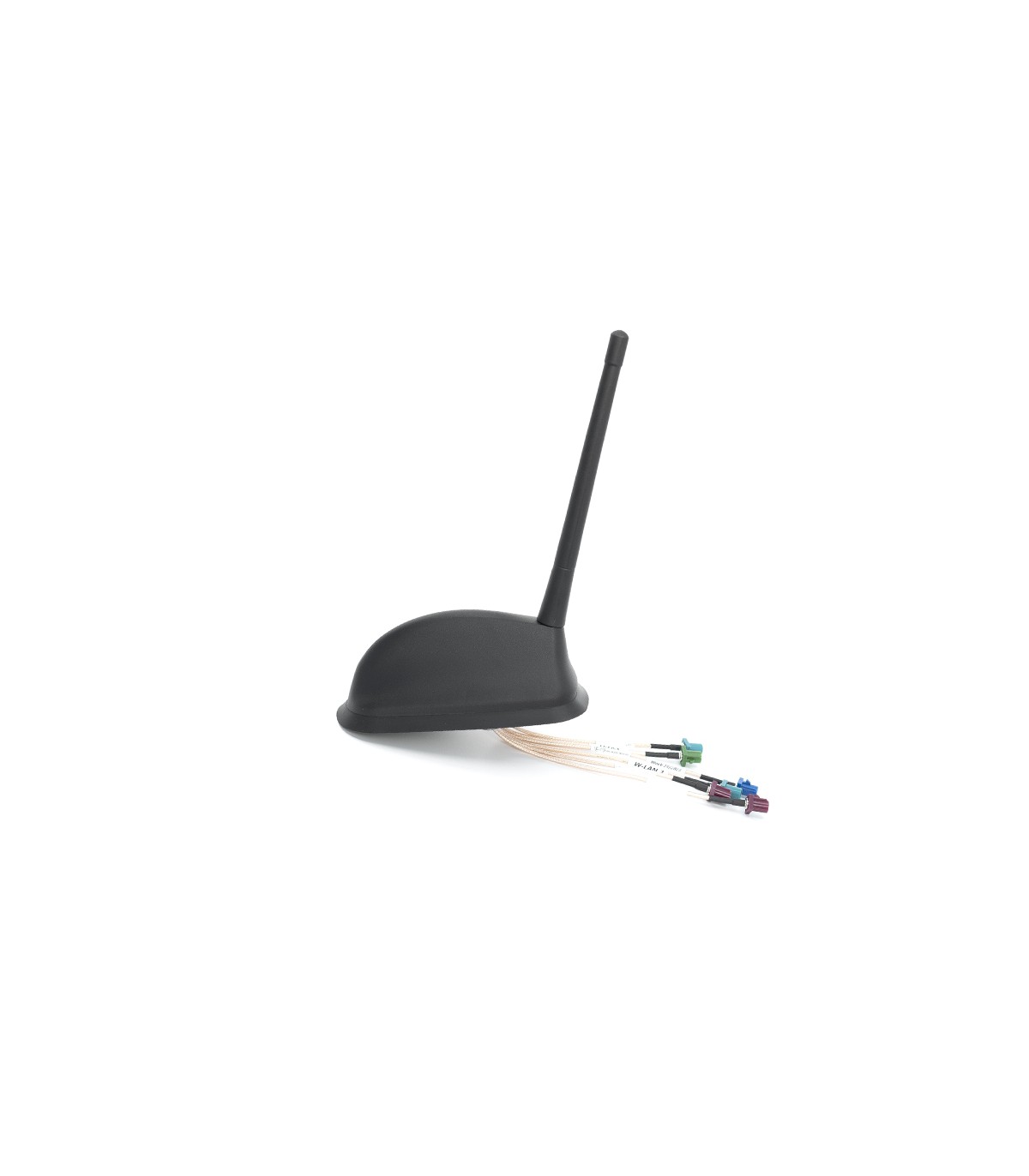

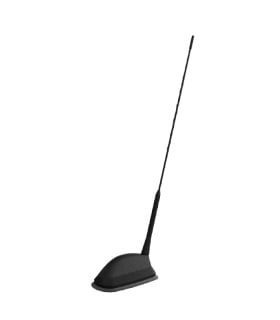

MIMO Antenna, 2xLTE-5G / 2xWLAN / TETRA & UHF/ GPS-GNSS-GALILEO

Material

Base material: Aluminum alloy EN AW-6082
Radome: Black PA6 with 30% glass fiber
Dimensions: L: 140 · W: 62 · H: 52 mm
Color: Black
Temperature: -40°C / +80°C
Weight: 330 g ± 10 g
Square: 15 × 15 mm
Round: Ø19 mm

Technical Data GPS/GNSS/GALILEO

Antenna type: Active Planar Patch Antenna
Impedance: 50 Ω
Frequency range: 1580 MHz
Bandwidth: ±28 MHz
V.S.W.R: < 2.0
Polarization: RHCP
Supply voltage: 2.7 ÷ 5.1 V
Current consumption: 10 ± 1 mA at 2.7 V, 16 ± 1 mA at 5.0 V
Amplifier gain: 18 ± 1 mA at 2.7 V, 22 ± 1 mA at 5.0 V
Patch antenna gain: 2 dB
Noise figure: 1.7 ÷ 2.1 dBi
Operating temperature: -30°C ÷ +85°C

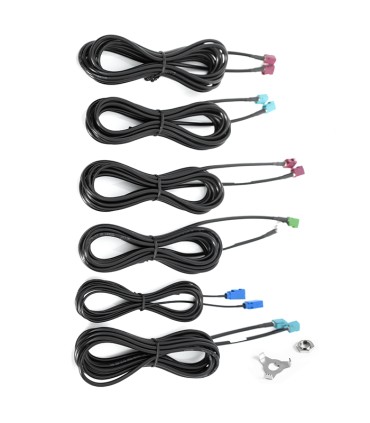

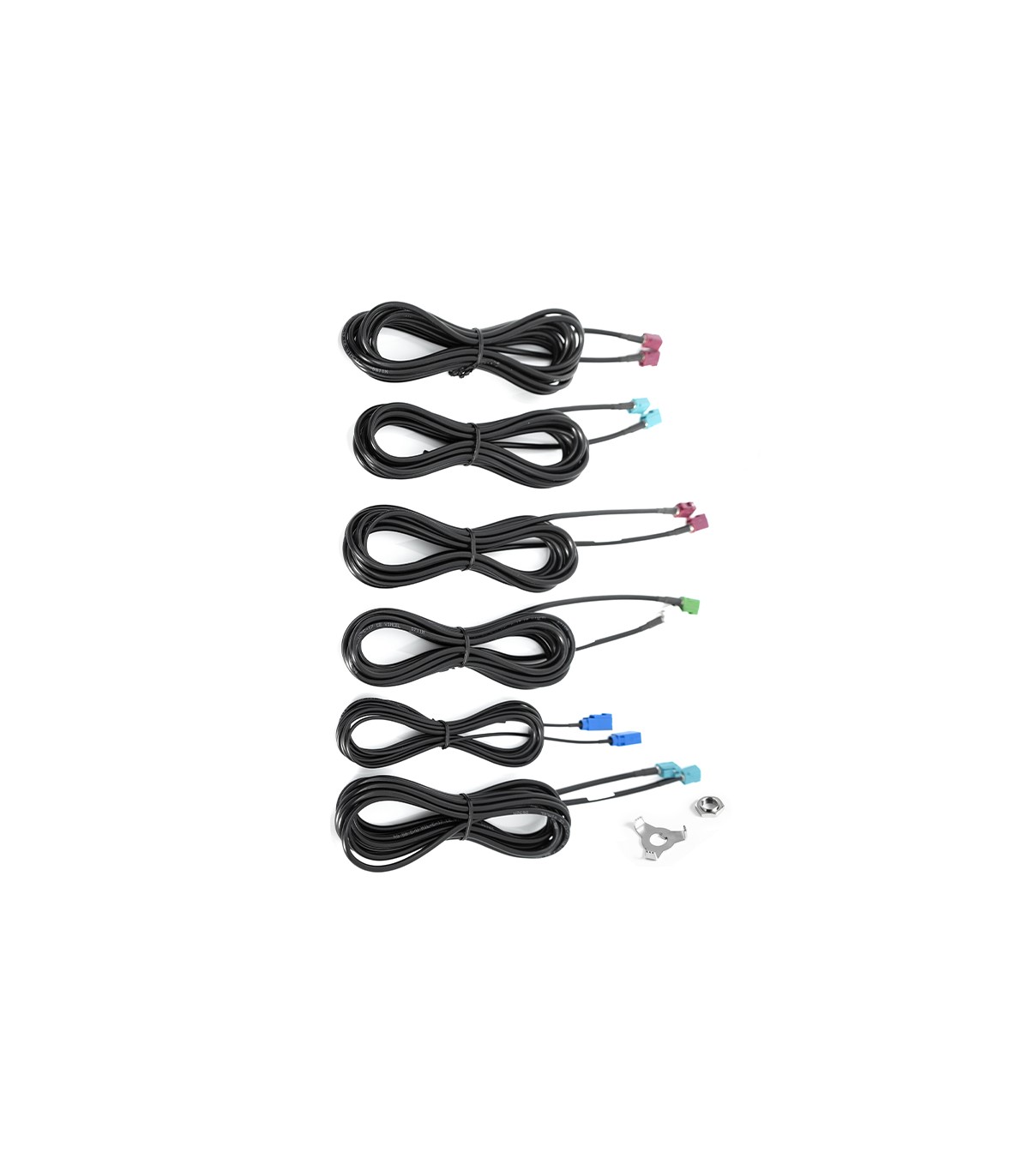

Cable length: RG-174, 5000 mm
Connector: Fakra m. “C”

Technical Data 2×LTE - 5G

Frequency range:

• AMPS/GSM 850: 824–894 MHz
• GSM 900: 880–960 MHz
• GSM 1800: 1710–1800 MHz
• GSM 1900: 1850–1990 MHz
• UMTS: 1920–2170 MHz
• LTE 700: 698–793 MHz
• LTE 2700: 2500–2690 MHz
• 5G: 3400 - 380 MHz

Impedance: 50 Ω
Polarization: Vertical
Emission: Omnidirectional
Gain: 2 dBi @ 890 MHz, 5 dBi @ 1710 MHz, 5 dBi @ 2690 MHz
Cable length: RG316, 5 m
Connector: Fakra m. “D”

Technical Data 2×WIFI

Frequency range: 2400 ÷ 2485 MHz, 5250 ÷ 5850 MHz
Impedance: 50 Ω
Polarization: Vertical
Emission: Omnidirectional
Gain: 4 dBi @ 2400 MHz, 6 dBi @ 5800 MHz
Cable length: RG316, 5 m
Connector: Fakra m. “Z”

Technical Data Tetra (380–430 MHz)

Antenna type: 1/4 Mobile Antenna
Impedance: 50 Ω
Frequency range: 380–430 MHz
Max. power: 20 W
V.S.W.R: < 2.0
Emission: Omnidirectional
Gain: 2.14 dBi
Polarization: Vertical
Rod length: 175 ± 3 mm
Rod elevation: 74°
Cable length: RG316, 5 m
Connector: Fakra m. “E”

EAN:8435757704024
