Power inverter 300 W.12V + USB connector. Blister packing.
A-301/400-12-USB

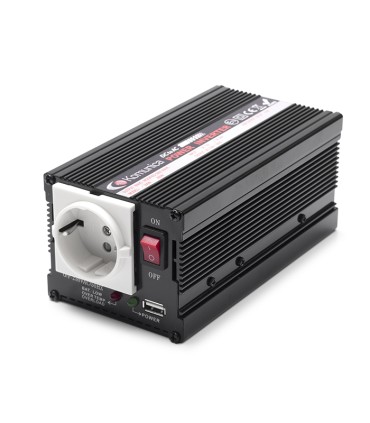

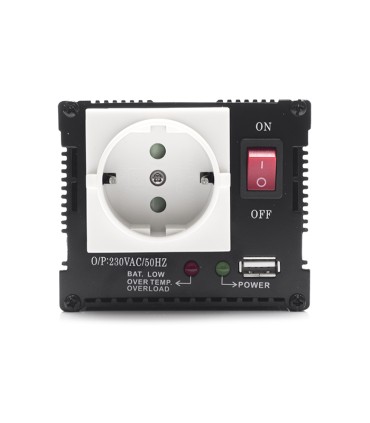

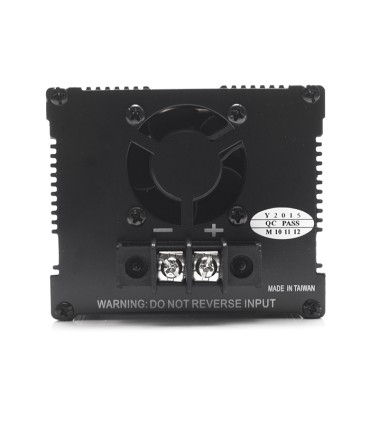

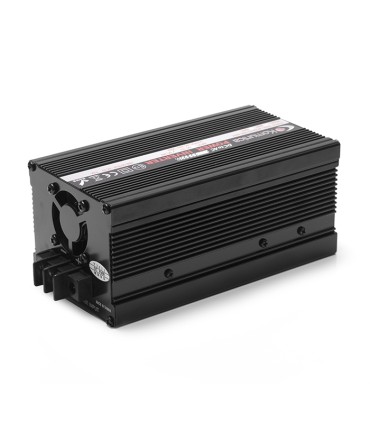

Inverter 400W, 12V/220V + USB connector
Specifications:
-
Input Voltage Range: 10-15V DC
-
Input Full Load Current: 40A
-
Standby Input Current: 0.36A
-
Output Voltage (Ac): 230V
-
Output Waveform: Modify Sinewave
-
Output Frequency: 50Hz
-
Continue Output Power: 400W
-
Peak Output Power: 800W
-
Battery Low Alarm: 10+/-0.5V DC
-
Battery Low Shutdown: 9.5+/-0.5V DC
-
Thermal Protect: 60+/-5DEG CW
-
Overload Protect: Yes (microcontroller)
-
AC Output Short Protection: Yes (microcontroller)
-
High Voltage Input Protection: Yes (microcontroller)
-
Battery Polarity Protection: Yes (by fuse)
-
Fuse: 25A *5
-
Dimensions (L*W*H) mm: 181 * 88 * 74
-
Weight: 1300g
EAN:8435757700132
