Compatible with:
Hytera series POC: PNC-360, PNC-380, NC-550 & BP-365
Speaker-Microphone compact size
Revolving Metal Clip
Reinforced Cable
Connector 3.5mm for external earphone
Level IP: IPX4
PWR-8800-PNC380

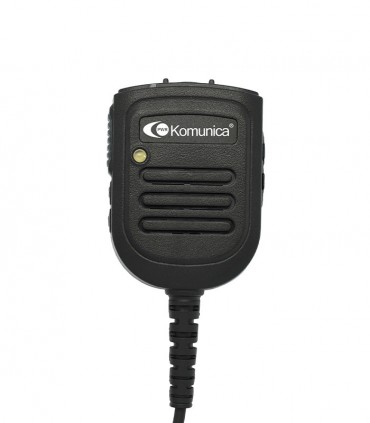

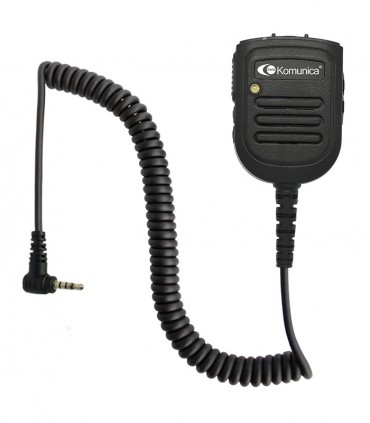

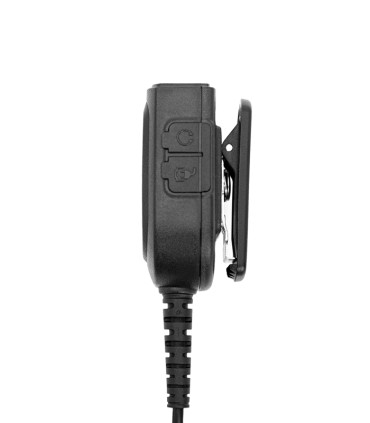

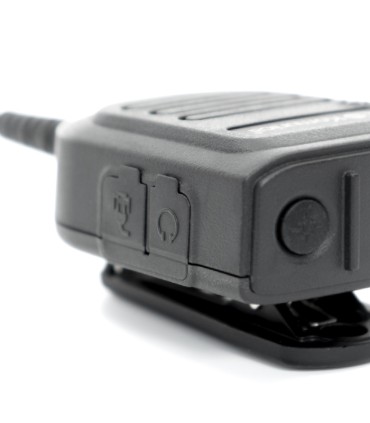

Komunica speaker-microphone , with amplified speaker (rechargeable), for Hytera series PNC-380/550 & BP-365 (POC)
Excelent audio quality (amplified speaker)
Protection Grade: IP-55
Hytera series POC: PNC-360, PNC-380, NC-550 & BP-365
Add to compare0
Add to wishlist
Features:
-
Amplification circuit for speaker
-
Built-in battery
-
Power draw from AAA battery
-
LED indicator for battery
-

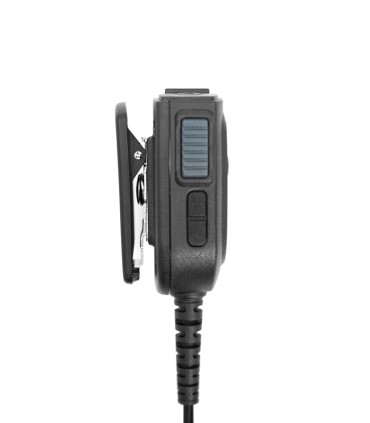

Volume control
-

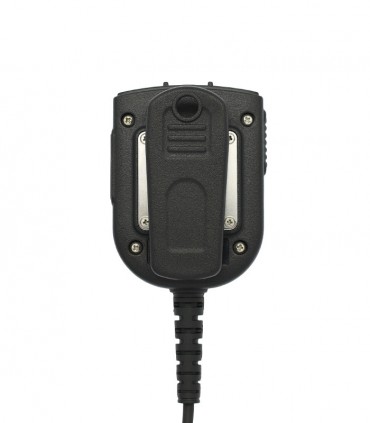

Metal Clip
-
3.5mm jack audio
-
4.2mm coil cable
-
Built-in battery
-

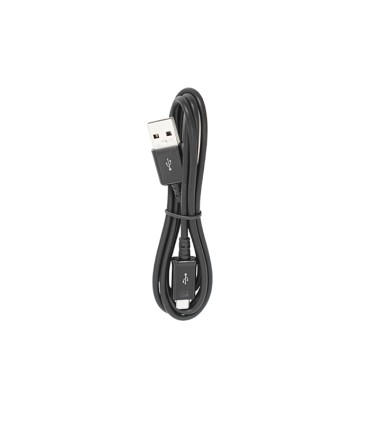

The charging of the unit will work by Micro USB
General Specification:
-
Operating Temp -20℃± 2℃ ~ 50℃± 2℃
-
Approx. Weight 180g
-
Charging Port Micro USB
-
Battery Li-polymer 3.7V 1500mAh
Electrical Specifications for Speaker Section:
Item Value Conditions
-
Speaker Dimensions Φ36 x 5.0mm
-
Impedance 8Ω ± 15% 1.2KHz / 1.0Vrms
-
Rated Input Power 1.0W
-
Max. Input Power 1.5W
-
Sensitivity 89 ±3 dB
-
Frequency Response 280Hz～5.6KHz Average SPL-10dB
-
Distortion <5% Max 1.0KHz/2.83Vrms
Electrical Specifications for Microphone Section:
Item Value
-
Type and Dimension: Condenser Type, Dimension =Φ6.0 x 3.6mm
-
Output Impedance 2.2KΩ ± 10%
-
Sensitivity -40dB ± 2dB 0dB=1V/Pa, F=1KHz
-
Frequency Range 50HZ ~ 16KHZ
-
Directivity Omni-directional
-
Operation Voltage
-
Standard Voltage 2V
-
Max. Operation Voltage 10V
-
S/N Ratio: More Than 60dB, @F=1KHz, 1Pa - A weighted
EAN:8435757705984
