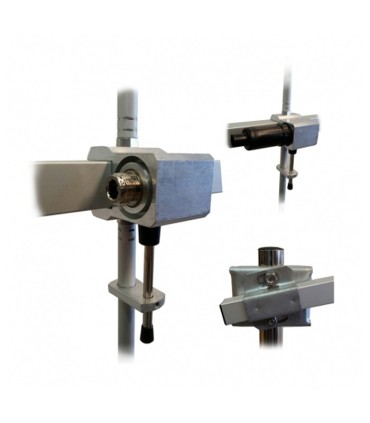

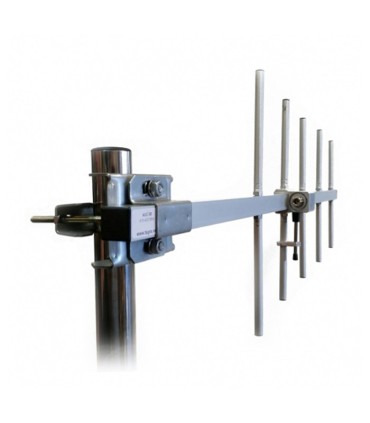

YG-5E-U-1
Direct.Anten. 5 elm.400-415mHz, 9dB Con.'N' 347mm
| Elements | 5 |
| Power | 300W |
| Gain (dB) | 9dBd (11,15dBi) |
| Impedance | 50 ohm |
| Material | Aluminum |
| R.O.E - S.W.R - T.O.S | 1,3:1 |
| Connector type | Female N connector |
| Polarization | Vertical & Horizontal |
| Wind load | 98 N ( 150 Km.) |
| Temperature | from -10º to 50º |
| Adjust type | Dipolo Gamma Match |
| Front to back radio | 20 dB |
| Mastil diameter (mm.) | 30-45 |
| Length | 945 mm. |
| Width | 347 mm. |
| High | 16 mm. |
| Weight | 1925 gr. |
| Units per package | 1 |
| Package dimensions | 153 x 10 x 8 cm. |
