YG-4E-V-1

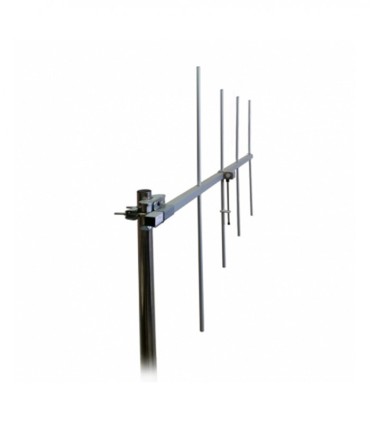

Directive antenna 4 elements VHF 134-148mHz, 7dB connector'N' 1097mm
Elements: 4
Power: 500W
Gain: 7 dBd (9,15 dBi)
Impedance: 50 ohm
Material: Anodized aluminum QUALANOD certificate
R.O.E - S.W.R - T.O.S: 1,3:1
Connector type: N (FEMALE)
Radiator lenght: 1,3 m
Electrical protection: Yes
Polarization: Vertical & Horizontal
Wind load: 180 km/h
Temperature (°C): from -10º to 50º
Adjust type: Gamma match
Front to back radio: 18 dB
Mastil diameter: 0,025-0,045 m
Support: Included
Element lenght: 1,09 m
Length: 1,30 m
Weigh: 2,10 kg
Package dimensions: 134 x 10 x 9 cm
