Home
>
Radio
>
Base Antennas
>
VHF - UHF Professional
>

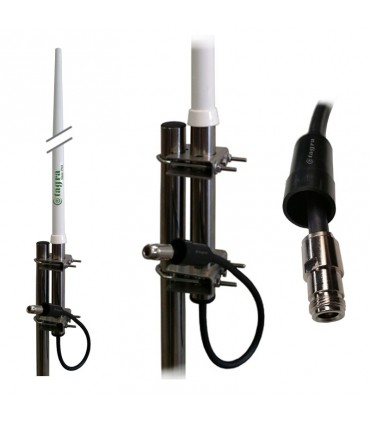

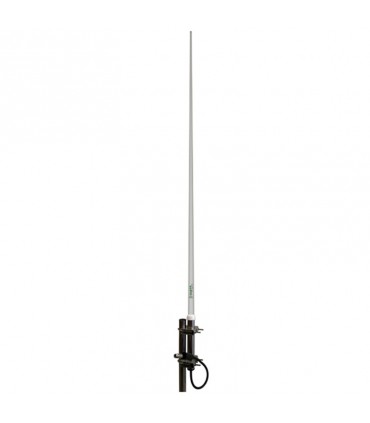

Vertical base antenna 143-147/430- 450 MHz UHF/VHF

Base ant. 143-147/430-450MHz 200W con N female

KAD-BIBANDA

Vertical base antenna 143-147/430- 450 MHz UHF/VHF

Vertical Base Antenna 144/430 MHz 200W Fiberglass UHF/VHF

Antenna of fiber and stainless steel 144/430 MHz. Antenna valid to transmit and receive in two bands UHF / VHF.

Characteristics:

Power: 200W
Gain (dB): 144(6dBd) 430(8dBd)
Impedance: 50 ohm
Material: Glass fiber
R.O.E. - S.W.R. - T.O.S. 1,2:1
Connector type: Female N connector
Radiator lenght (mm.): 2840 mm
Polarization: Vertical
Wind load: 187 Km/h
Temperature: from -10º to 50º
Adjust type: Adjusted
Mastil diameter (mm.): 30-45
Length: 2840 mm.
Width: 12 mm.
High: 24 mm.
Weight: 1200 gr.

KAD-BIBANDA-MAX - Vertical Base Antenna 144/430 MHz 200W Fiberglass UHF/VHF

Omni band VHF/UHF Antenna in Aluminum + Fiberglass 144/430 MHz with Omnidirectional base.
