The Ultimate Optimizable 10-11 Meter Base Station Antenna 5000 Watt Rated
NEW! Upgraded replacement for IMAX-2000 antenna
Remember to improve the performance of your antenna MAX-OPTIMIZED by adding the optional IMAX-GPK ground plane
Add to compare0
Add to wishlist

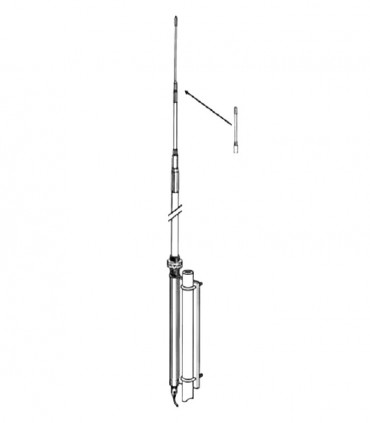

Max-Optimizer allows you to choose between a balanced 10-11 meter antenna that will perform well in both bands or optimize the antenna for the 11 meter band. To Optimize for 11 meter performance assemble the antenna with the 12” optimizer section installed between the mid and top section as a 4 piece antenna. For balanced 10-11 meter performance leave out the 12” optimizer section and assemble as 3 piece antenna.
General Features:
- Maximum power: 5000 W
- Frequency range from 26 MHz to 33.5 MHz using tuning rings and trimming top section; approximately twice the bandwidth of SWR 2:1 than A-99 & MAX-2000 (3MHz with SWR<2:1)
- Gain 1 to 2dB higher than any 5/8 wavelength antenna
- Mounting system provides easy one-piece installation
- Long bushings make the antenna mechanically strong
- Supplied in 3-4 sections
- Meets or exceeds CPSC’s electrical shock risk standards
* Add the IMAX-GPK ground plane kit to improve your performance
