Ground radial kit.
Lowers angle of radiation for greater range.
Comes with slip on collar, four 6 ft fiberglass radials.
improve the performance of your A-99 by adding the optional GPK-1 ground plane

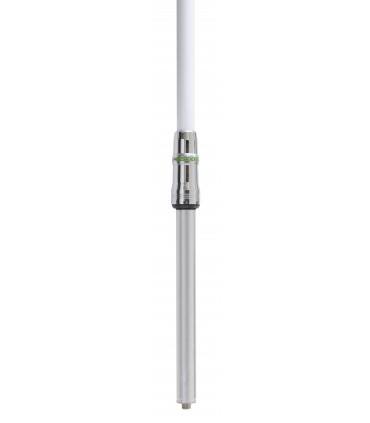

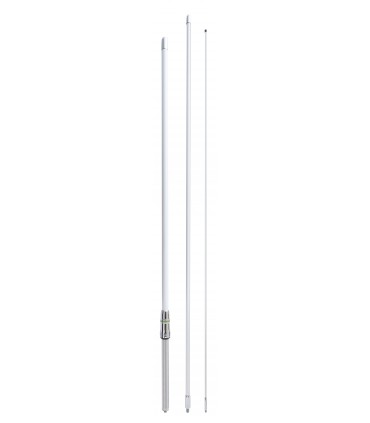

CB Base antenna, made in fiber-glass.
Frequency: 22-30MHz
Type: 1/2 wave
Length: 5270mm / 207.48 inches
Packaging measurements: 1,85*0,10*0,85m
Packaging weight: 3 kg
Add to compare0
Add to wishlist
Specifications:
Type of antenna | : | 1/2 wave |
Impedance | : | 50 Ohm |
Frequency Range: | : | 22-30 MHz |
Polarization: | : | Vertical |
R.O.E. | : | 1,5/1 |
Gain | : | + 8 dBi |
Maxim Power | : | 2000 Watt P.E.P |
Band Wide (kHz) & number of channels (ca) | : | 8000 kHz (800 cx) |
Weight: | : | 2 kg / 4.41 lbs |
Length: | : | 5270 mm |
Radiante | : | Fiber / graphite |
