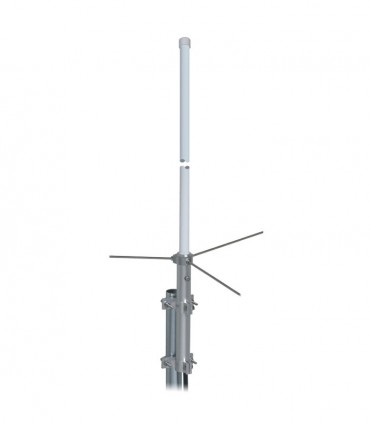

SIRO BASE ANTENNA 5/8 VHF (135-175MHz) Fiber-glass

GPF-21-N

SIRO BASE ANTENNA 5/8 VHF (135-175MHz) Fiber-glass

VHF base antenna in fiber-glass, 115-150MHz

Base antenna 136-146 MHz. 500W, 2700mm. -N-

SIRO BASE ANTENNA 5/8 VHF (135-175MHz) Fiber-glass

Electrical Data:

Type:	5/8 λ ground plane
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	135…175 MHz Tunable
Systems:	2m-HAM, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, ISM-169MHz
Gain:	1.5 dBd – 3.65 dBi
Max Power:	200 W (CW)
Grounding protection:	DC-Ground
Connector:	N-female

Mechanical Data:

Materials:	Anodized Aluminium, Brass, Stainless steel, Fiberglass, Zamak
Height (approx):	1730 mm / 5.68 ft
Weight (approx):	1200 gr / 2.65 lb
Mounting type:	On-Mast

KAD-155 - Base antenna 148-158 MHz. 500W, 2700mm "N" connector

KAD-150 - Base antenna 142-152 MHz. 500W, 2700mm "N" connector

Omnidirectional antenna VHF 136-146 MHZ

PWR-BC-103-L - Fiber-glass NO radials, 115-150MHz W-B, 1.58 mts

Fiberglass base antenna 115-150MHZ, without radials, 3 dbi, 200W, 1580 MM. N connector.

YG-6E-V-1 - Directive Antenne 6 elements, 136-149MHz coverage, 10dB Connector UHF (PL)

KAD-140/5 - Base antenna 136-146 MHz. 150W, 5dB, 5850mm. "N"

KAD-170/5 - Base antenna 163-174 MHz. 150W, 5dB, 5600mm. "N"

YG-6E-V-3 - Direct.Anten 6 elm.160-174mHz, 10dB Con.'N' 965mm

KAD-140 - Base antenna 136-146 MHz. 500W, 2700mm. -N-

Omnidirectional antenna VHF 136-146 MHZ

YG-6E-V-2 - Directive antenne 6 elements 146-160mHz, 10dB with UHF (PL )

KAD-170 - Base antenna 163-174 MHz. 500W, 2700mm "N" connector

PWR-BC-100-L - VHF base antenna in fiber-glass, 115-150MHz

Fiberglass base antenna 115-150MHZ, with radials, 6.5 dbi, 200W,1700 MM., N connector.

YG-4E-V-3 - Directive antenna 4 elements160-174mHz, 7dB connector'N' 1097mm

KAD-165/5 - Base antenna 158-168 MHz. 150W, 5dB, 5650mm. "N"

PWR-BC-100-H - VHF base antenna in fiber-glass, 134-174MHz

Fiberglass base antenna 134-174MHZ, with radials, 6.5 dbi, 200W,1700 MM., PL connector.
