KAD-140

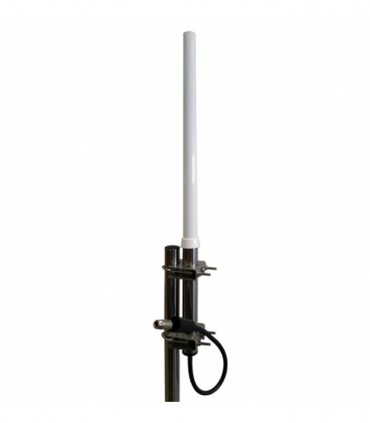

Base antenna 136-146 MHz. 500W, 2700mm. -N-
| Power | 500W |
| Gain (dB) | 3,5 dBd (5,65 dBi) |
| Impedance | 50 ohm |
| Material | Fiber |
| R.O.E - S.W.R - T.O.S | 1,2:1 |
| Connector type | Female N connector |
| Polarization | Vertical |
| Wind load | 187 Km/h |
| Temperature | from -10º to 50º |
| Adjust type | Adjusted |
| Mastil diameter (mm.) | 30-45 |
| Length | 2700 mm. |
| Width | 30 mm. |
| High | 30 mm. |
| Weight | 1660 gr. |
| Units per package | 1 |
| Package dimensions | 280 x 10 x 10 cm. |
