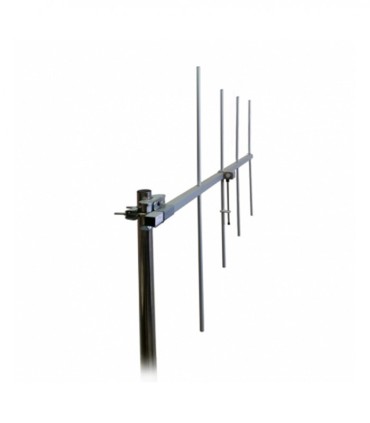

Directive antenna 4 elements160-174mHz, 7dB connector'N' 1097mm

YG-4E-V-3

Directive antenna 4 elements160-174mHz, 7dB connector'N' 1097mm

Directive antenna 4 elements148-160mHz, 7dB conector'N' 1097mm

Directive Antenne 6 elements, 136-149MHz coverage, 10dB Connector UHF (PL)

Elements: 4

Power: 500W

Gain: 7 dBd (9.15 dBi)

Impedance: 50 ohm

Material: Anodized aluminum QUALANOD certificate

R.O.E - S.W.R - T.O.S: 1.3:1

Connector type: N (FEMALE)

Radiator length: 1.3 m.

Electrical protection: Yes

Vertical & Horizontal: Polarization

Wind load: 180 km/h

Temperature (°C): from -10º to 50º

Adjust type: Gamma match

Front to back radio: 18 dB

Mast diameter: 0.025-0.045 m

Support: Included

Element length: 1.97 m.

Length: 1.30 m

Weight: 2.10kg

Package dimensions: 134 x 10 x 9 cm

GPF-21-N - SIRO BASE ANTENNA 5/8 VHF (135-175MHz) Fiber-glass

SIRO BASE ANTENNA 5/8 VHF (135-175MHz) Fiber-glass

PWR-BC-100-H - VHF base antenna in fiber-glass, 134-174MHz

Fiberglass base antenna 134-174MHZ, with radials, 6.5 dbi, 200W,1700 MM., PL connector.

PWR-BC-103-H - Fiber-glass NO radials, 134-175MHz W-B, 1.58mts

Fiberglass base antenna 134-175MHZ, without radials, 3,2 dbi, 300W, 1580 MM, N connector.

KAD-155 - Base antenna 148-158 MHz. 500W, 2700mm "N" connector

KAD-170 - Base antenna 163-174 MHz. 500W, 2700mm "N" connector

YG-6E-V-1 - Directive Antenne 6 elements, 136-149MHz coverage, 10dB Connector UHF (PL)

PWR-BC-103-L - Fiber-glass NO radials, 115-150MHz W-B, 1.58 mts

Fiberglass base antenna 115-150MHZ, without radials, 3 dbi, 200W, 1580 MM. N connector.

YG-4E-V-1 - Directive antenna 4 elements VHF 134-148mHz, 7dB connector'N' 1097mm

KAD-140/5 - Base antenna 136-146 MHz. 150W, 5dB, 5850mm. "N"

KAD-155/5 - Base antenna 148-158 MHz, 150W, 5dB, 5750mm "N"

PWR-BC-100-L - VHF base antenna in fiber-glass, 115-150MHz

Fiberglass base antenna 115-150MHZ, with radials, 6.5 dbi, 200W,1700 MM., N connector.

KAD-150/5 - Base antenna 142-152 MHz. 150W, 5dB, 5800mm. "N"

OMNI ANTENNA BASE VHF 142-152 MHZ

KAD-170/5 - Base antenna 163-174 MHz. 150W, 5dB, 5600mm. "N"

KAD-160 - Base antenna 152-163 MHz. 500W, 2700mm "N" connector

YG-4E-V-2 - Directive antenna 4 elements148-160mHz, 7dB conector'N' 1097mm

YG-6E-V-2 - Directive antenne 6 elements 146-160mHz, 10dB with UHF (PL )
