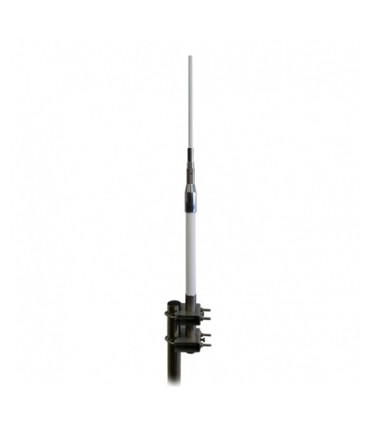

KAD-155/5
Base antenna 148-158 MHz, 150W, 5dB, 5750mm "N"
| Type | Colineal dipole 3 x 5/8 |
| Power | 150W |
| Gain (dB) | 5 dBd (7,15 dBi) |
| Impedance | 50 ohm |
| Material | Fiber |
| Colour | White |
| R.O.E - S.W.R - T.O.S | 1,5:1 |

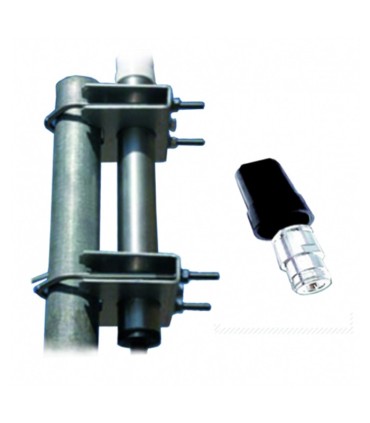

| Type mounting | Mast 30-45 mm |
| Connector type | Connector N femalle |
| Polarization | Vertical |
| Wind load | 70,5 N – (150 Km/h) |
| Temperature | from -40º to 55º |
| Adjust type | Adjusted |
| Length | 5750 mm. |
| Width | 30 mm. |
| High | 30 mm. |
| Weight | 3800 gr. |
| Units per package | 1 |
| Package dimensions | 300 x 75 x 75 cm. |
