DNC-520

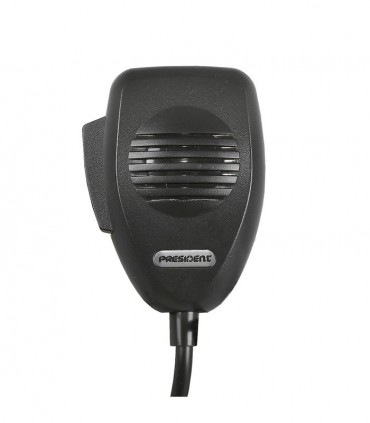

PRESIDENT compact microphone, 6-Pin electret (ACFD521)
Original President microphone for 6-pin CB radio with up and down function, compatible with the following radios:
ANDY, BARRY AM/FM, BILL, BILL-II, GRANT-II ASC, HARRY, HARRY (ASC& Classic), HARRY-III, HENRY ASC Classic, JACKSON II, JFK II, JIMMY II ASC, JOHNNY/JOHNNY ASC, JOHNNY II, JOHNNY III, JOHNSON II, LINCOLN II ASC, RONALD, TAYLOR II Classic, TAYLOR II Classic, TAYLOR III ASC, TAYLOR IV, TEDDY ASC, TOMMY, TRUMAN, WALKER, WALKER, II.
Add to compare0
Add to wishlist(1)
ATTENTION:
Unit side position, the pin #6 is supplied with 13.2V, do not replace a dynamic microphone with an electret and vice versa.
| pin side view |
 |
| N° | Câbles |
| 1 | Modulation |
| 2 | RX |
| 3 | TX |
| 4 | - |
| 5 | Ground |
| 6 | - |
