Compatible con todas las radios actuales de PRESIDENT de 6 pines para CB y 10 metros.

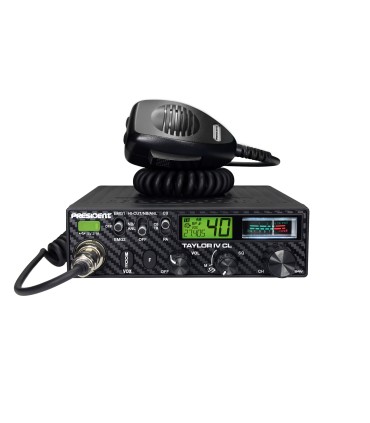

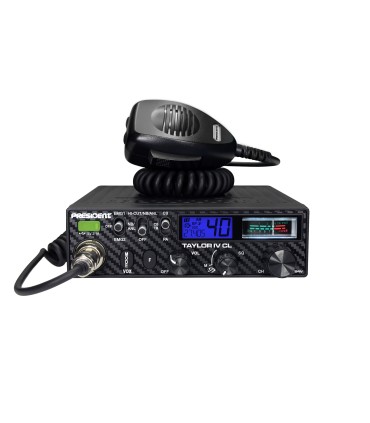

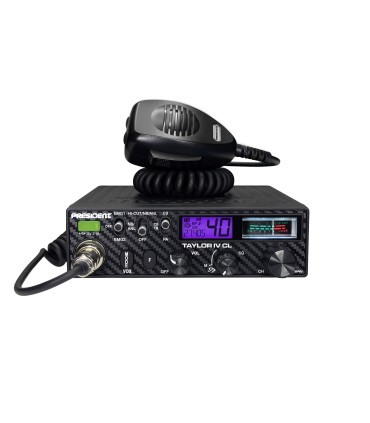

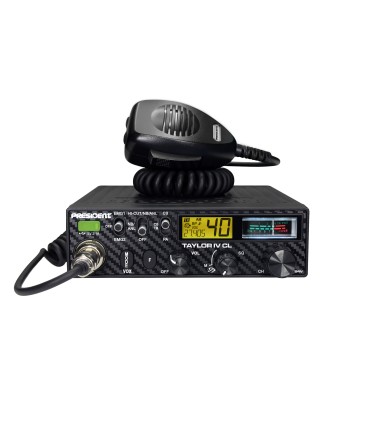

TAYLOR IV-CL
PRESIDENT CB27 Radio 40 Channels AM/FM ASC 12/24V S.W.R. NRC
Features:
-
40 AM / FM channels
-
Channel selector switch
-
Volume control and on/off
-
Manual squelch and ASC
-
Multifunction LCD display
-
Frequency indicator
-
Level indicator
-
Public Address
-
Talkback
-
ANL, NB, HI-CUT filter
-
Function key F
-
Switchable key beep
-
Roger Beep
-
Scan
-
AM/FM mode switch
-
VOX
-
Electret or dynamic microphone
-
SWR (Power/VSWR reading)
-
Emergency channel preset (EMG 1/2)
-
Front microphone jack
-
External speaker jack
-
USB 5V 2.1A
-
NRC
-
PRESIDENT CHANNELS
-
UP/DN - ON/OFF
Backlight Color:
Technical Specifications
Channels |
: |
40 |
Modulation modes |
: |
AM / FM |
Frequency range |
: |
26.965 MHz to 27.405 MHz |
Antenna impedance |
: |
50 ohms |
Power supply |
: |
13.2 V |
Dimensions |
: |
125 (W) x 140 (D) x 45 (H) mm |
Weight |
: |
0.9 kg |
Transmission
Frequency Tolerance |
: |
+/- 200 Hz |
Carrier Power |
: |
4 W AM / 4 W FM |
Spurious Emissions |
: |
Less than 4 nW (-54 dBm) |
Frequency Response |
: |
300 Hz to 3 kHz in AM/FM |
Adjacent Channel Power |
: |
Less than 20 μW |
Microphone Sensitivity |
: |
3.0 mV |
Consumption |
: |
< 2 A at 13.2 V / < 1.5 A at 26.4 V |
Max. Modulation Signal Distortion |
: |
2% |
Reception
Max. Sensitivity at 20 dB sinad |
: |
0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM) |
Frequency Response |
: |
300 Hz to 3 kHz in AM/FM |
Adjacent Channel Sensitivity |
: |
60 dB |
Max. Audio Power |
: |
3 W |
Squelch Sensitivity |
: |
min 0.2 μV - 120 dBm / max 1 mV - 47 dBm |
Image Frequency Rejection Ratio |
: |
60 dB |
Intermediate Frequency Rejection Ratio |
: |
70 dB |
Consumption |
: |
150 ~ 500 mA (13.2 V) / 100 ~ 300 mA (26.4 V) |
Channel Rejection Ratio |
: |
65 dB |
