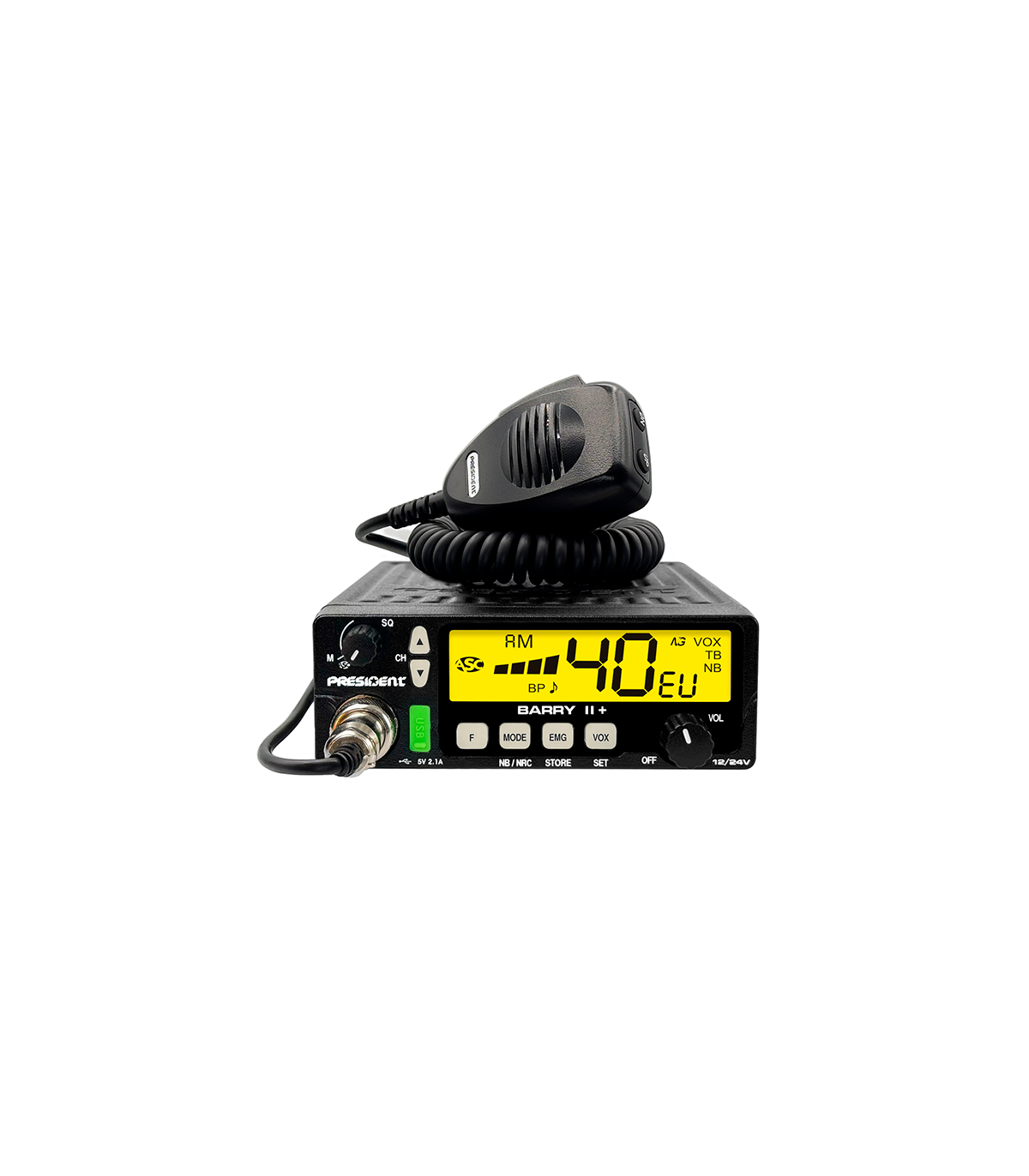

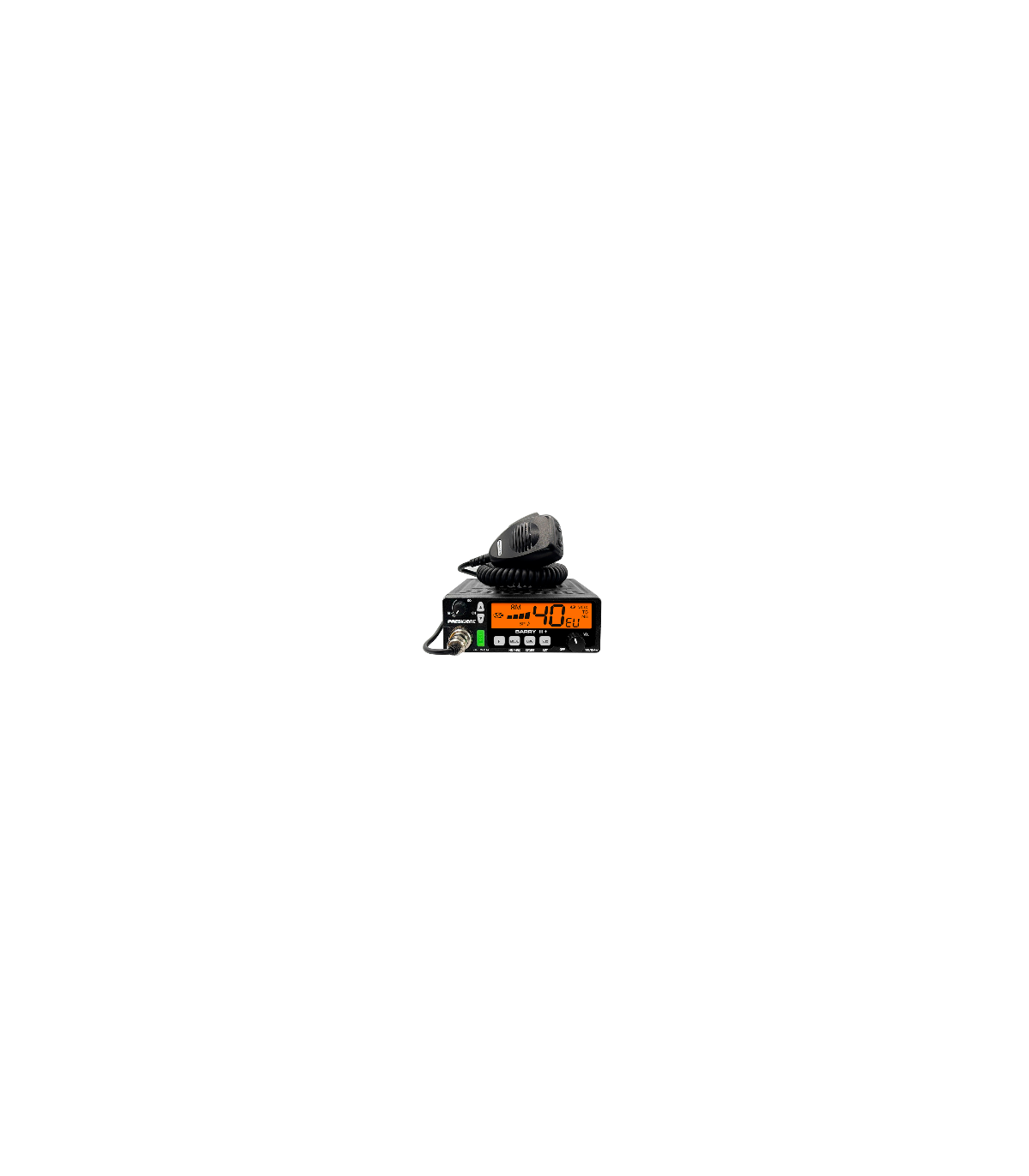

New CB PRESIDENT radio, with 40 channels ASC, AM/FM
BARRY-II +

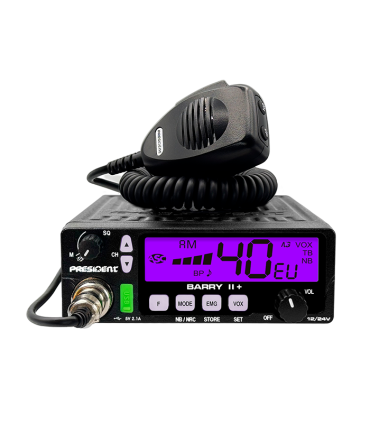

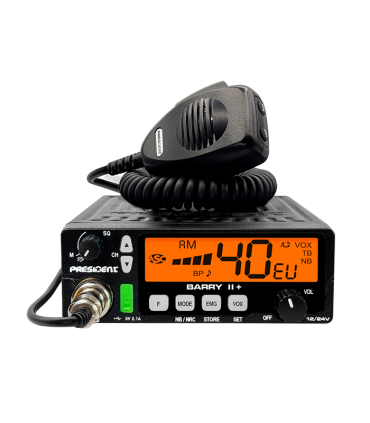

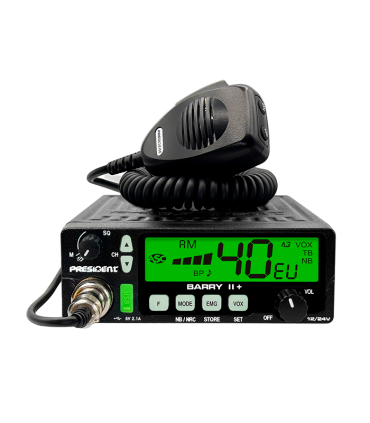

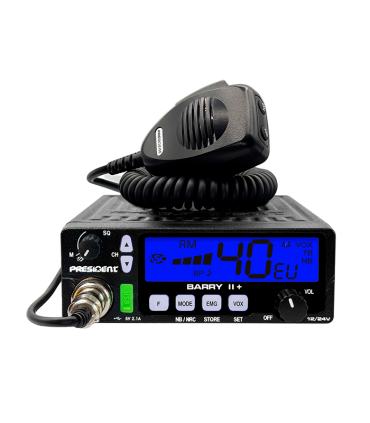

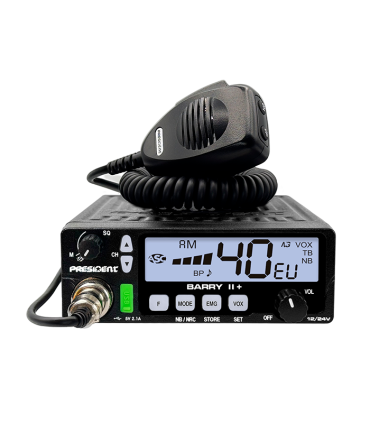

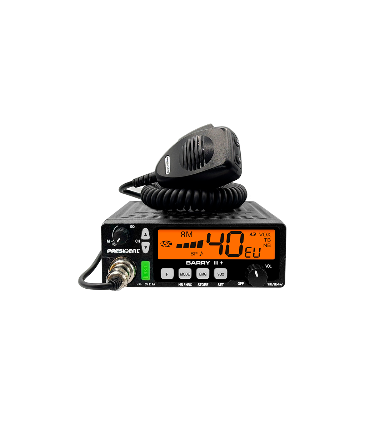

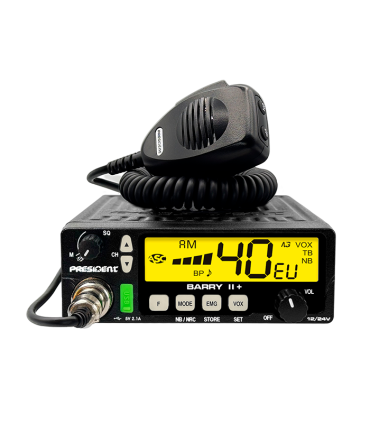

PRESIDENT CB Radio 40 Channels AM/FM ASC 12/24V NRC (TX+RX)
Features
40 AM / FM channels
12 / 24 V
Channel selector up/down
Volume and on/off control
Manual Squelch and ASC
Large multifunction LCD display
Level indicator
Public Address
Talkback
ANL filter (integrated), NB
Function key F
Selectable key beep
Roger Beep
VOX
Noise Gate
AM / FM mode switch
Programmable channel preset
PRESIDENT CHANNELS
TOT (Time out timer)
Microphone socket on the front
External HP socket
Backlight color:
Technical Specifications
Channels | : | 40 |
Modulation Modes | : | AM / FM |
Frequency Range | : | From 26.965 MHz to 27.405 MHz |
PRESIDENT CHANNELS | : | Yes |
Antenna Impedance | : | 50 ohms |
Power Supply Voltage | : | 12 V / 24 V |
Dimensions | : | 125 (L) x 180 (D) x 45 (H) |
Weight | : | 0.9 kg |
Included Accessories | : | 1 Up/Down microphone with its holder, 1 support with fixing screws |
Filter | : | Integrated ANL (Automatic Noise Limiter) |
Transmission
Frequency Tolerance | : | +/- 200 Hz |
Carrier Power | : | 4 W AM / 4 W FM |
Spurious Emissions | : | Less than 4 nW (-54 dBm) |
Frequency Response | : | 300 Hz to 3 kHz |
Emission Power on Adjacent Channel | : | Less than 20 μW |
Microphone Sensitivity | : | 7 mV |
Current Consumption | : | 1.7 A at 13.2 V / 0.85 A at 26.4 V |
Maximum Modulation Signal Distortion | : | 2% |
Reception
Maximum Sensitivity at 20 dB SINAD | : | 0.5 µV - 113 dBm AM / 0.35 µV - 116 dBm FM |
Frequency Response | : | 300 Hz to 3 KHz |
Adjacent Channel Sensitivity | : | 60 dB |
Maximum Audio Power | : | 2.5 W |
Squelch Sensitivity | : | min 0.2 μV - 120 dBm / max 1 mV - 47 dBm |
Image Frequency Rejection Rate | : | 60 dB |
Intermodulation Frequency Rejection Rate | : | 70 dB |
Current Consumption | : | 160 ~ 420 mA (13.2 V); 100 ~ 250 mA (26.4 V) |
