Cable: RG-174 (5m)
Connector: MCX male
Other kind of connectors, please ask for.
MA-2160

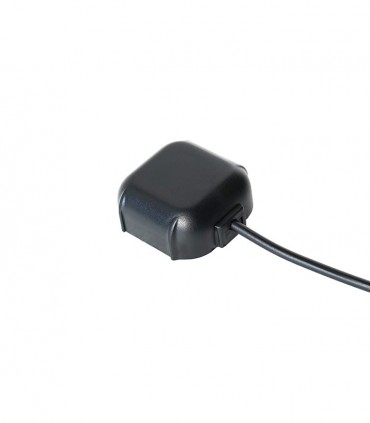

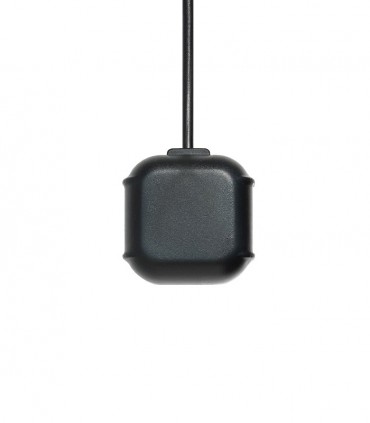

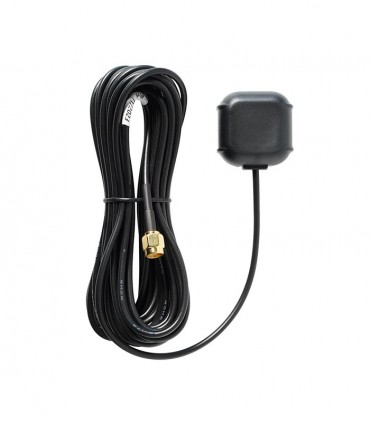

GPS active antenna, magnetical, with 5m coaxial cable
Datos Técnicos GPS-GLONASS-GALILEO
Antenna Type : Active Patch Antenna
Impedance: 50 Ω
Frequency Range: 1575.42÷1600 MHz
Current absorption(mA): 10 ÷ 30
V.S.W.R: Less than 2.0
Polarization: RHCP
Noise figure (dB): 1.8-2.2
Gain: 25±5
Voltage: 3-5 V.
Cable lenght: RG 174 5000mm
Conector: As request
Specificaciones
Dimensión: 33.2*31.5*13.5 mm
Material: ABS
Peso Neto (g): 50
Colour: Black
Temperature: -30ºC - +80ºC
EAN:8435757703577
