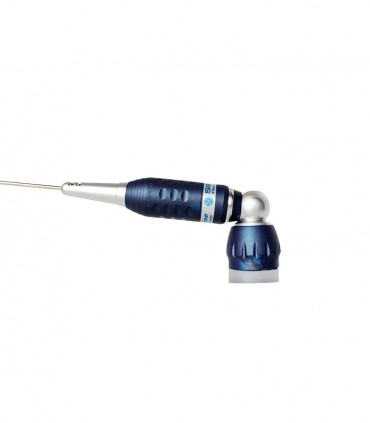

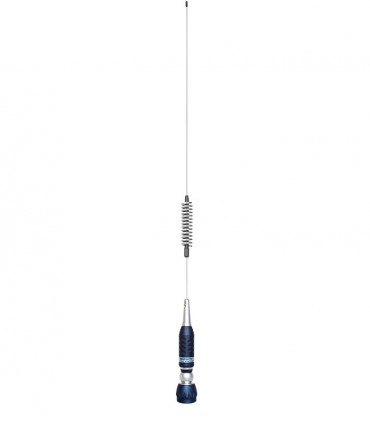

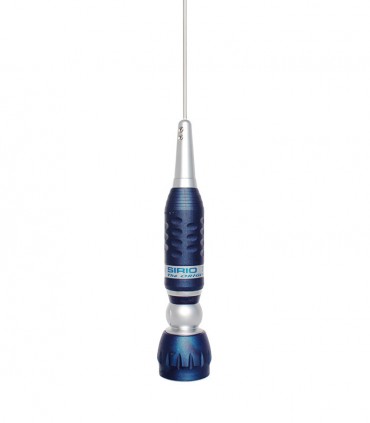

TURBO-800PL
SIRIO Mobile CB Antenna with standard base PL-259
Radiant Antenna Turbo 800 PL. Supplied without cable RG58 and without base PL SO239 (See images).
Blue Line series.
Includes 90º articulated Turbo base with exclusive quick-lock system. High performance.
Length +/- 84 cm. Conical rod in stainless steel with coil.
Connector on the base UHF-Male (PL259). It is threaded or directly coupled on any standard SO239 base.
Blue Line series.
Includes 90º articulated Turbo base with exclusive quick-lock system. High performance.
Length +/- 84 cm. Conical rod in stainless steel with coil.
Connector on the base UHF-Male (PL259). It is threaded or directly coupled on any standard SO239 base.
Add to compare0
Add to wishlist
CHARACTERISTICS:
• CB & 10m mobile antenna
• Turbo Blue Line version
• Excellent performance and reduced size
• Range: 27 ... 28.5 MHz
• Up to 40 CH without retouching adjustment
• Up to 1000W SSB Maximum
• DC short-circuited coil
• Total length: 84 cm
Electrical Data:
• Double load coil in the base and coil in radiant
• Frequency range: 27 ... 28.5 MHz (Adjustable)
• Bandwidth @ SWR = <1.2 = 450 KHz
• Polarization: Vertical
• Impedance 50 Ohm
• Maximum continuous power AM / FM: 200 W
• Intermittent maximum power (SSB) 1000 W
Mechanical Data
• Stainless steel 17/7 PH conical rod
• Chromed brass components

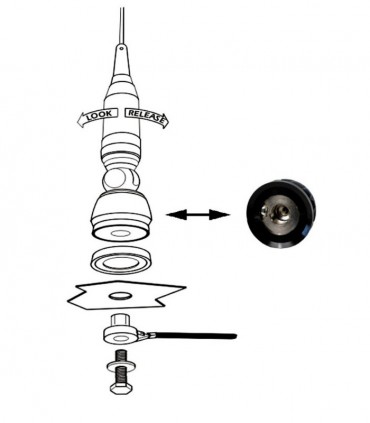

The Sirio Turbo system allows tilting up to 90º the antenna and its quick locking or fixing without the need for any additional key. A quarter of a turn on the coil is enough to unlock and lock the antenna again.
