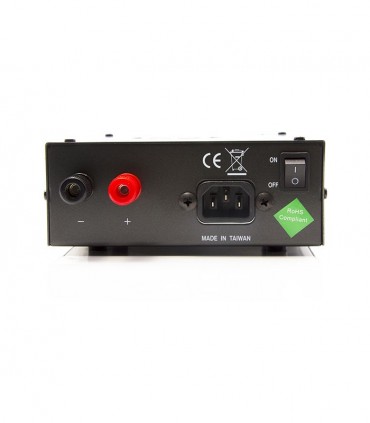

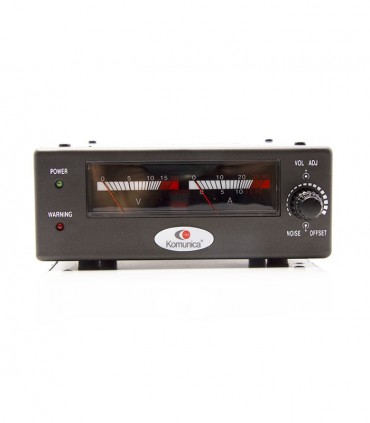

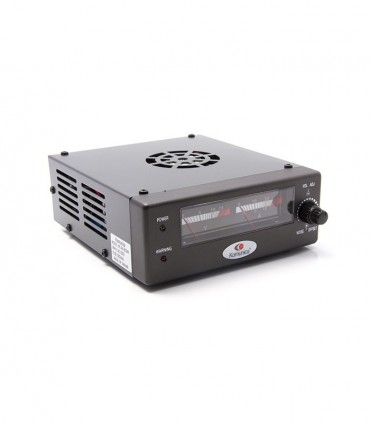

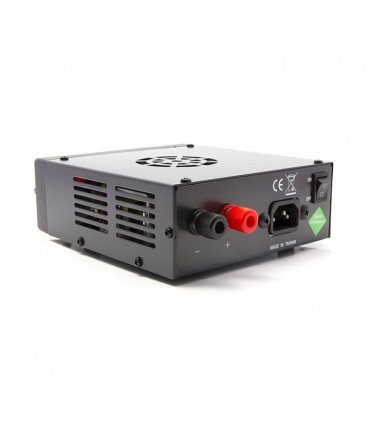

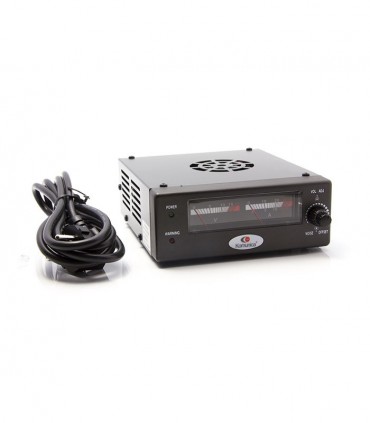

AV-825-Z (0-24 A) Switching Power Supply
AV-825-NF
Power Supply 25A Switching Noise Filter
Switching power supply 25A with noise filter & instruments. Output voltage regulable from 4,0V-16V (DC).
Add to compare0
Add to wishlist
Specifications
-
Input Voltage: AC 90~125 or AC 200~240 inside selectable
-
Output Voltage: DC 4.0V~16V variable
-
Output Voltage Regulation: Less than 1%
-
Ripple: Less than 9 mVp-p at rated load
-
Dimentions (L·W·H): 165 X 147 X 55 mm
-
Weight: AV-825-NF 1.2
Protection
-
Short Protection, Short Protection & Over Voltage Protection >16V: It will reduce the output voltage down to 0.1v Amps down to 0.4Amps and the warning led will light up. When short condition, removing it will automatic restart the power supply to normal condition.
-
Over Temperature Protection: have double over temperature protection
Output Current
-
AV-825-NF Max 25 Amps continuous 22 Amps
EAN:8435757700927
