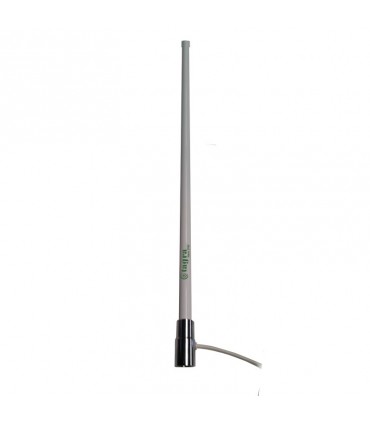

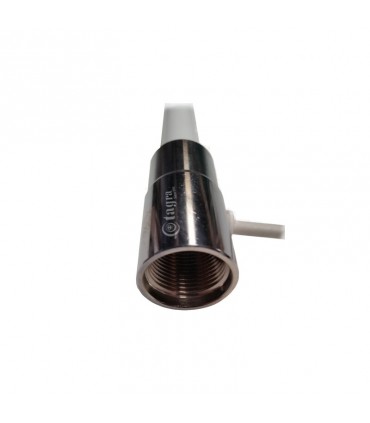

VHN-110
Marine wide antenna VHF, frequency range: 156-162,5, 100W, LONG. 1550 MM.
Characteristics:
- Frecuency Range: 156-162,50MHz
-
Power: 100W
-
Gain (dB): 3dBd (5,15dBi)
-
Impedance: 50 ohm
-
Material: Fiber
-
Colour: White
-
Type mounting: Mast 25-60 mm
-
Connector type: With cable 5,5m (RG58)
-
Electrical shunt shield protection: Yes
-
Polarization: Vertical
-
Adjust type: Adjusted
-
Support: Not included
-
Length: 1240 mm.
-
Width: 25 mm.
-
High: 25 mm.
-
Weight: 1450 gr.
