KAD-BIB-MAR

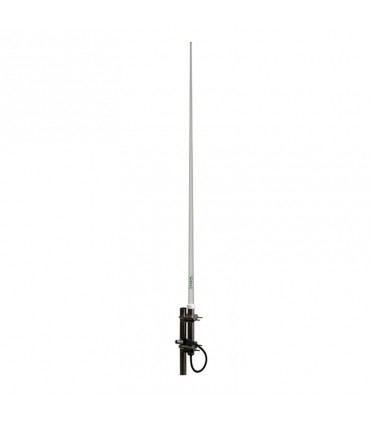

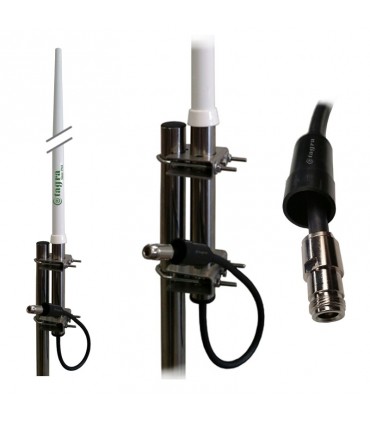

Marine Dual Band Base Antenna 156 (+/- 4 MHz) 6dB, (380-420 MHz) 8dB
Characteristics:
-
Type: Double dipole colinear
-
Power: 100W
-
Gain (dB): VHF 6dBd / UHF 8 dBd
-
Impedance: 50 ohm
-
Material: Fiber
-
R.O.E - S.W.R - T.O.S: 1,5:1 VHF / 2:1 UHF
-
Connector type: N female
-
Radiator Lenght (mm.): 2650 mm
-
Wind Load: 187 km
-
Temperature: de -10º hasta 50º
-
Polarization: Vertical
-
Adjust type: Adjusted
-
Mastil Diameter (mm.): 30-45
-
Lenght: 2650 mm.
-
Weight: 3200 gr.
