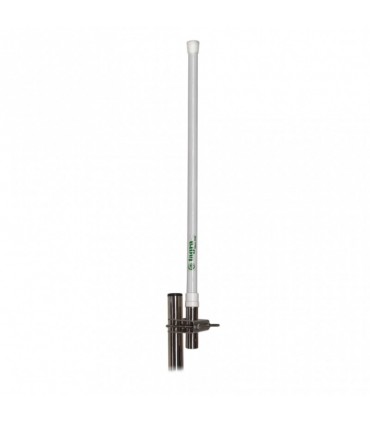

Marine Band Antenna UHN-70/3A
Compatible with supports KN-500, KN-501 and KN-510

            Characteristics:
-
Power: 100W
-
Gain (dB): 3dBd (5,15dBi)
-
Impedance: 50 ohm
-
Material: Fiber
-
Colour: White
-
R.O.E - S.W.R - T.O.S: 1,3:1
-
Connector type: PL
- Electrical shunt shield protection: Yes
-
Polarization: Vertical
-
Wind load: 180 km
-
Temperature: from -40º to 55º
-
Adjust type: Adjusted
-
Support: Not included
-
Mastil diameter (mm.): 25-40
-
Length: 1250 mm.
-
Width: 25 mm.
-
High: 25 mm.
-
Weight: 920 gr.
