Fixed Marine Stainless Steel Support
Compatible with UHF-70/3, VHN-110, ANS-12, MAR150 and ANK-19

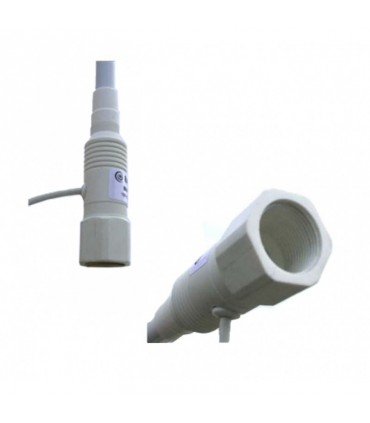

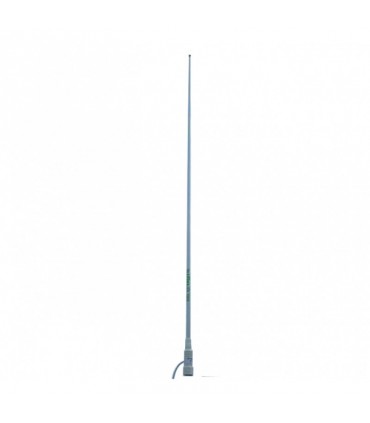

MAR-150-VHF
VHF Marine Band Antenna, frequency range 156-162,50MHz, 100W, LONG. 1560 MM.
Characteristics:
- Frequency range: 156-162,50MHz
-
Power: 100W
-
Gain (dB): 3dBd (5,15dBi)
-
Impedance: 50 ohm
-
Material: Fiber
-
Colour: White
-
R.O.E - S.W.R - T.O.S: 1:1,2
-
Type mounting: Mast 25-60 mm
-
Connector type: RG-58 (5,5 mts) THREAD 1"
-
Polarization: Vertical
-
Wind load: 20 km
-
Temperature: from -40º to 55º
-
Adjust type: Adjusted
-
Support: Not included
-
Cable type: RG-58 (5,5 meters)
-
Length: 1550 mm.
-
Width: 40 mm.
-
High: 40 mm.
-
Weight: 600 gr.
