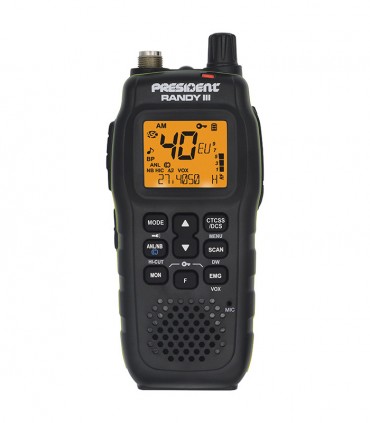

Robust Micro Speaker Compatible with Randy III & Jerry
General
Number of channels |
: |
40 |
Modulation modes |
: |
AM/FM |
Frequency ranges |
: |
from 26,965 MHz to 27,405 MHz |
CTCSS |
: |
38 tones |
DCS |
: |
104 codes |
Antenna impedance |
: |
50 ohms |
Power supply |
: |

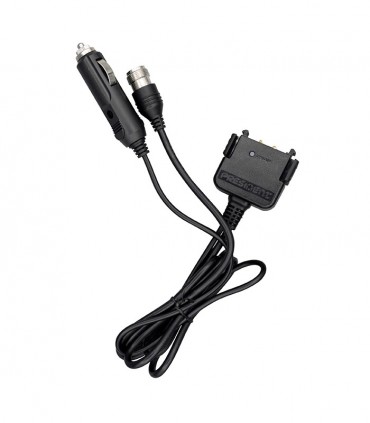

7.4 V (Handheld configuration) / 13.2 V (Mobile configuration) |
Size |
: |
152 (H) x 66,5 (L) x 37 (P) mm |
Weight |
: |
305 g with battery |
Loud speaker |
: |
8 ohms, 1 W |
Transmission
Frequency allowance |
: |
+/- 200 Hz |
Carrier power |
: |
4 W AM / 4 W FM |
Transmission interference |
: |
inferior to 4 nW (- 54 dBm) |
Audio response |
: |
300 Hz to 2,5 KHz |
Emitted power in the adj. channel |
: |
inferior to 20 μW |
Microphone sensitivity |
: |
7 mV |
Drain |
: |
1,8 A max. |
Modulated signal distortion |
: |
2 % |
Reception
Maxi. sensitivity at 20 dB sinad |
: |
0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM |
Frequency response |
: |
300 Hz to 3 kHz |
Adjacent channel selectivity |
: |
60 dB |
Maximum audio power |
: |
1 W |
Squelch sensitivity |
: |
min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm |
Frequency image rejection rate |
: |
60 dB |
Intermediate frequency rej. rate |
: |
70 dB |
Drain |
: |
Mode ECO |
Related Products
Robust and professional helmet with padded ear cups type gel of maximum comfort, which provide maximum attenuation of ambient noise.
Flexible boom microphone type Gooseneck Boom with Noise Cancellation.Suitable for use with professional homologated helmet and ideal for especially noisy environments.Komunica helmets are supplied without cable: Please consult available NC-PRO-CAB versions
Speaker-microphone small size for Icom IL (2P)
ICOM:
F3G, F3GS, F4G, F4GS, F11, F11S, F33G, F43G, F21BR, F21GM, F24S, F3021, F4021, ICOM V80, ICOM IC-T3H … etc.
REXON:
RL-328 SERIES
Compatible with:
ICOM F3G, F3GS, F4G, F4GS, F11, F11S, F33G, F43G, F21BR, F21GM, F24S, F3021, F4021, ICOM V80, ICOM IC-T3H … etc.
REXON:
RL-328 SERIES
Compatible with:
ICOM:
F3G, F3GS, F4G, F4GS, F11, F11S, F33G, F43G, F21BR, F21GM, F24S, F3021, F4021, ICOM V80, ICOM IC-T3H … etc.
REXON:
RL-328 SERIES
Compatible with:
ICOM:
F3G, F3GS, F4G, F4GS, F11, F11S, F33G, F43G, F21BR, F21GM, F24S, F3021, F4021, ICOM V80, ICOM IC-T3H … etc.
REXON:
RL-328 SERIES
1 other product in the same category:

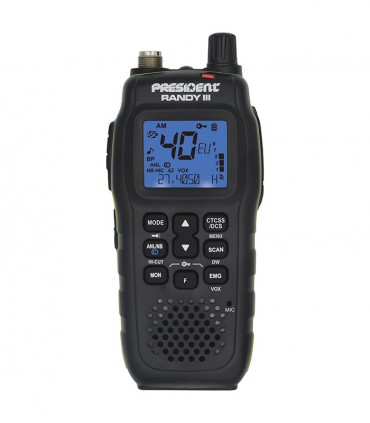

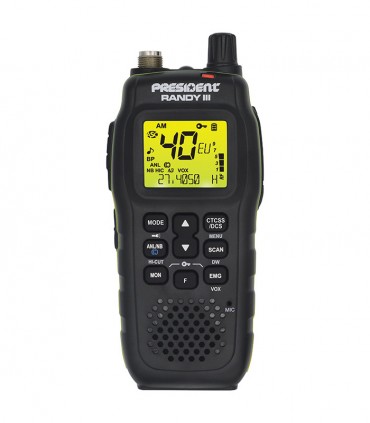

- 40 channels AM / FM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- ANL, NB, HI-CUT filters
- Noise Gate
- Scan
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Dual watch
- Tone
- Key locking
- Preset channel programmable (EMG 1 & 2)
- Eco mode
- External microphone plug

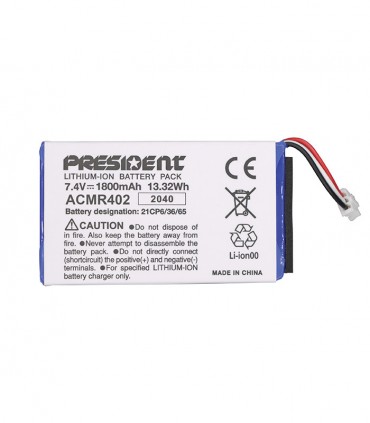

- External loudspeaker jack- Flashlight- Battery : Lithium-Ion
