This product has a new reference, until now it has corresponded to PWR-RH-536
Antenna for walkie VHF, 26CM, Y EN RX 120,150,300,800 Y 900 MHZ,10W, 360MM, BNC
PWR-TA-71-BNC

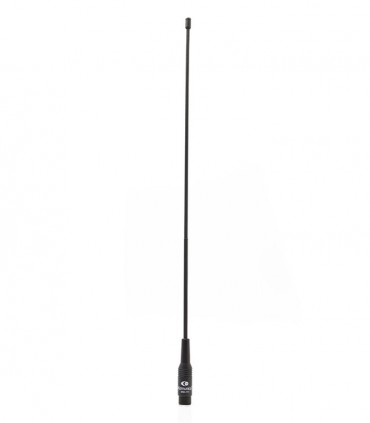

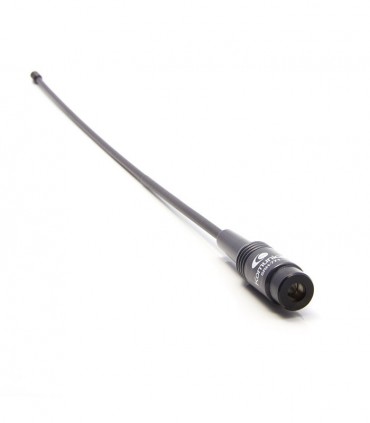

Walkie antenna VHF-UHF + RX, 40cm, BNC
Antenna for walkie VHF-UHF, RX 120,150,300,800 Y 900 MHZ, PWR 10W, 420MM, BNC
Add to compare0
Add to wishlist
-
Type: Antena Walkie
-
Gain: 2.15 dBi (430 MHz)
-
Frequency: VHF-UHF (144-430 MHz) -RX 120,150,300, 800, 900 MHz
-
Max Power Rating: 10W
-
Impedance: 50 Ω
-
Height: 400 mm
-
Connector: BNC
ENCODING CHART
| OLD CODE | NEW CODE |
| PWR-RH-536 | PWR-TA-36-BNC |
| PWR-SRH-40-S | PWR-TA-40-S |
| PWR-SRH-40-SMAF | PWR-TA-40-SMAF |
| PWR-SRH-607-S | PWR-TA-607-S |
| PWR-SRH-607-SMAF | PWR-TA-607-SMAF |
| PWR-RH-701- | PWR-TA-70-BNC |
| PWR-SRH-771-S | PWR-TA-71-S |
| PWR-SRH-771-SMAF | PWR-TA-71-SMAF |
| PWR-SRH-789 | PWR-TA-89-S |
| PWR-RH-795 | PWR-TA-95-BNC |
EAN:8435757707445
