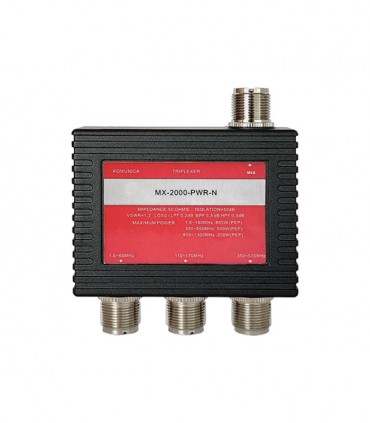

Triplexer 1.6 -60 / 110-170/350-570MHZ, with cables
MX-2000-PWR-D

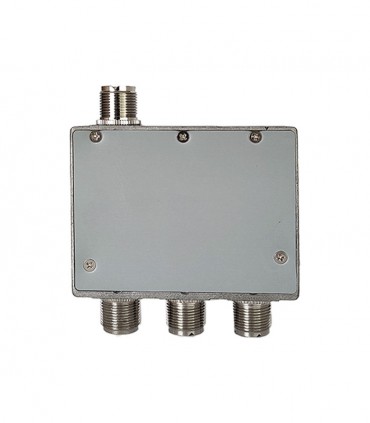

Triplexer 1.6 -60 / 110-170/350-570MHz, no cables
Connector: SO-239
Connectors: 2 x SO-239 + 1 N Female
-
SO-239: 1.6-60MHz = 800W (PEP) 0.2dB
-
SO-239: 110-170MHz = 500W (PEP) 0.3dB
-
N Female: 350-570MHz = 200W (PEP) 0.3dB
Isolation: >50dB
VSWR: <1.2
Impedacen: 50Ω
Dimensions: 86 x 27 x 65mm
Weight: 300g
EAN:8435757704093
