BOOMERANG-27-A

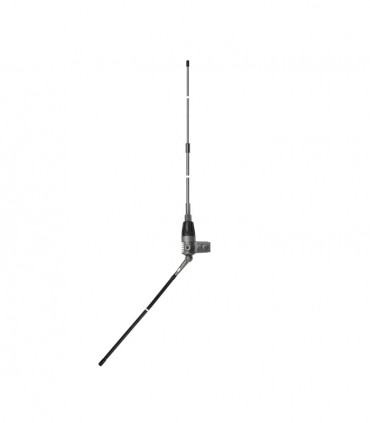

SIRIO - CB BALCONI ANTENNA 3,9M ALUMINIUM

Specifications
Type: 1/4 λ ground plane boomerang
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.8 ... 27.6 MHz Tunable
Systems: 10m-HAM
Gain: 0 dBd, 2.15 dBi
Bandwidth: ≥ 800KHz @ SWR ≤ 2
Max Power: 300 Watts (CW) continuous          900 Watts (CW) short time
Connector: UHF-female (SO-239)
Materials: Aluminium, Copper, Galvanized steel, Fiberglass, Nylon
Height (approx): 3600 mm / 11.81 ft
Weight (approx): 780 gr / 1.72 lb
Mounting type: On-Mast
Read moreShow less
Product Details
BOOMERANG-27-A
Related Products
13 other products in the same category:
Ground radial kit. Lowers angle of radiation for greater range. Comes with slip on collar, four 6 ft fiberglass radials. improve the performance of your A-99 by adding the optional GPK-1 ground plane
The A99 features the Solarcon  in Ring Adjust-A-Match tuning making it possible to tune the input to the antenna and obtain the optimum S.W.R. over a range of frequencies. Raising the rings raises the frequency and lowering the rings lowers the frequency. High: 5,35m Remember to improve the performance of your A-99 antenna by adding the optional GPK-1 ground plane
Ground radial kit for antennas Max-2000 & Max-Optimizer.  Lowers angle of radiation for greater range. Comes with mounting bracket, four 6 ft fiberglass  radials mounting hardware. Improve the performance of your MAX-2000 & MAX-OPTIMIZER by adding the optional IMAX-GPK ground plane.
