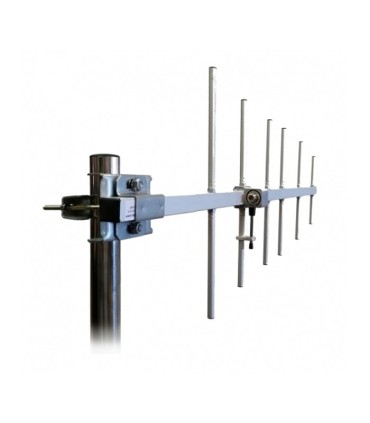

YG-6E-V-2
Directive antenne 6 elements 146-160mHz, 10dB with UHF (PL )
| Elements | 6 |
| Power | 150W |
| Gain (dB) | 10 dBd (12,15 dBi) |
| Impedance | 50 ohm |
| Material | Aluminum |
| R.O.E - S.W.R - T.O.S | 1,5:1 |
| Connector type | UHF connector |
| Radiator lenght (mm.) | 2000 |
| Polarization | Vertical & Horizontal |
| Wind load | 98 N ( 150 Km.) |
| Temperature | from -10º to 50º |
| Adjust type | Dipolo Gamma match |
| Front to back radio | 16 dBd |
| Mastil diameter (mm.) | 30-45 |
| Element lenght (mm.) | 965 |
| Length | 2000 mm. |
| Width | 965 mm. |
| High | 50 mm. |
| Weight | 2100 gr. |
| Units per package | 1 |
| Package dimensions | 210 x 10 x 10 cm. |
