Magnetic base super-grip
PL-259 connector
CHARACTERISTICS:
Classic PL
DC shorted coil
Total length: 1.40 m
Factory Code: P/N: 2201405.05
Electrical Data:
Type: Charging coil on spring base.
Frequency range: 27… 28.5 MHz (Adjustable)
System: CB 27MHz, 10m-HAM
Polarization: Vertical
Impedance: 50 Ohm
Bandwidth: @ SWR = <2: = 1.24 MHz
SWR @: <2
Maximum continuous AM / FM Power: 150 W
Maximum intermittent power (SSB): 450 W
Mechanical Data:
Conical rod in stainless steel 17/7 PH
Chromed brass components
Compatible magnetic bases: BM-1-PL, BK-1500, BK-1800 by Komunica
Related Products
Máximum grip and and robustness
Diameter: 15cm
Cable: 5m (RG-58)
BM-1-PL - Komunica professional base reinforced Maximum grip12cm diameterSO-239 connectorRG-58 cable (5mts)
16 other products in the same category:
PRESIDENT HAWAII Antenna 1/2 wave adjustable.
Turbo 2000 antenna standard format SIRIO-TURBO. Blue Line series.
90º articulated base with exclusive quick locking system. High performance. Length +/- 1.45 m. It is supplied complete. Includes CCTurbo-RG58 4m cable and Turbo Base.
Conical rod in stainless steel.
Frequency: 26-28 MHz
Installation Version
Mobile antenna Citizen Band (27 MHz) with bearings, conical stainless steel rod 7.17 PH, PL includes standard basis.
Just the antenna, without base or cable. Range from 27 to 28.5 MHz.
Mobile band antenna (27 Mhz) with ball joint, 17/7 PH stainless steel conical rod, includes Turbo base and 4 meters of RG-58 cable.
Radiant Antenna Turbo 800 PL. Supplied without cable RG58 and without base PL SO239 (See images).Blue Line series.Includes 90º articulated Turbo base with exclusive quick-lock system. High performance.Length +/- 84 cm. Conical rod in stainless steel with coil.Connector on the base UHF-Male (PL259). It is threaded or directly coupled on any standard SO239 base.
Mobile CB & 10m Antenna, Turbo Blue Line Series. Complete set includes specific turbo base (articulated) and cable. Compatible with all types of mounts except magnetic bases.

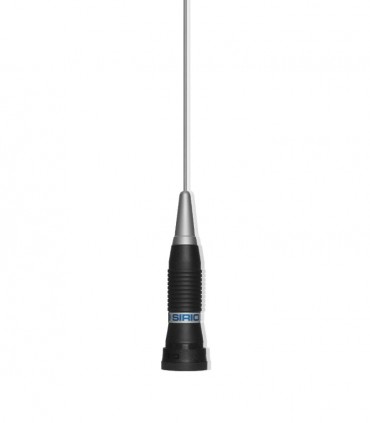

SIRIO CB Antenna, 5/8 with adapter coil for PL bases.
