Komunica Triplexer 1.6-160 / 350-550 / 850-1300MHz

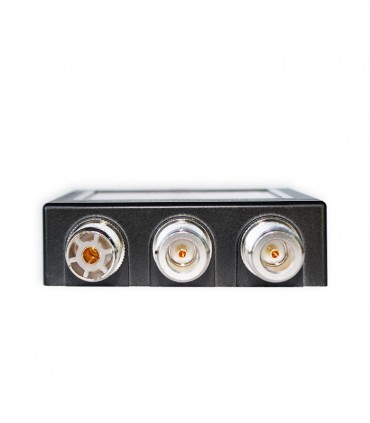

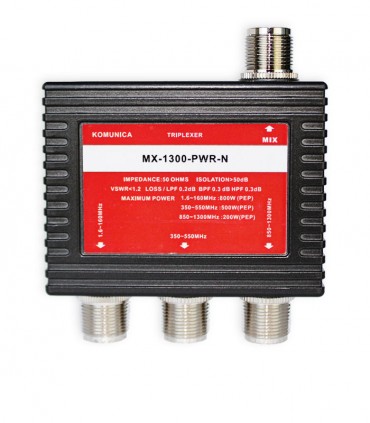

Komunica Triplexer 1.6-1060 (PL) / 350-550 (N) / 850-1300MHz (N)

MX-1300-PWR-N

Komunica Triplexer 1.6-160 / 350-550 / 850-1300MHz

Komunica Triplexer: 1.6-160 (PL) / 350-550 (N) / 850-1300MH (N) + Cables

Triplexer without cables:

1.6-160 MHz: SO-239
350-550 MHz: N female
850-1300MHz: N female

Input connector: N female

Impedance: 50 Ohm

VSWR: < 1.2

PL-259: 1.6-160MHz = 800W (PEP) / 0.20 dB (Insertion Loss)
N male: 350-550MHz = 500W (PEP) / 0.30 dB (Insertion Loss)
N male: 850-1300MHz = 200W (PEP) / 0.40 dB (Insertion Loss)

Cable type: 5D-2VS, 35cm

Isolation: <50dB

Dimensions: 86 x 27 x 65mm

Weight: 390g

EAN:8435757704086
