LTE-1-SMA-M

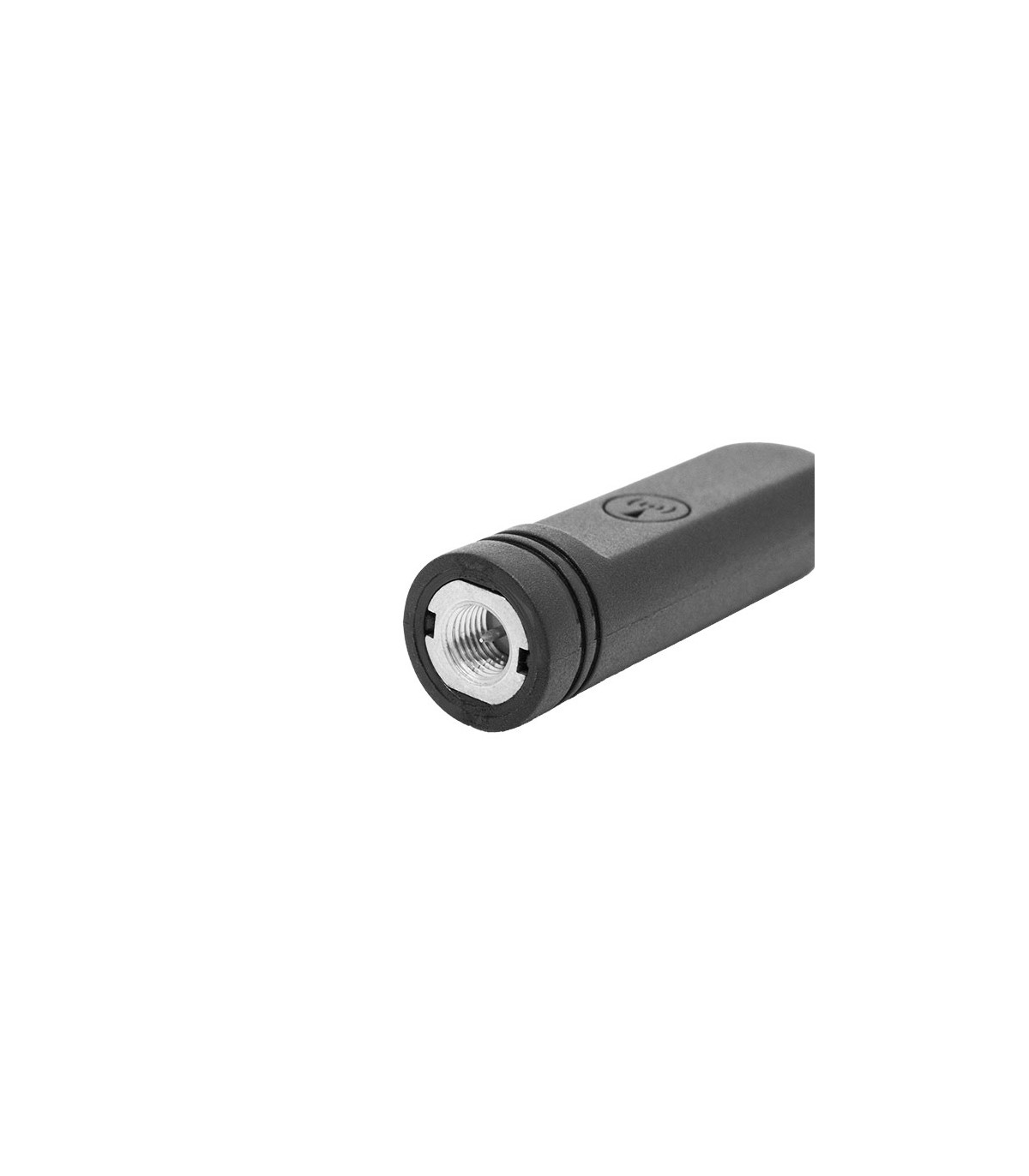

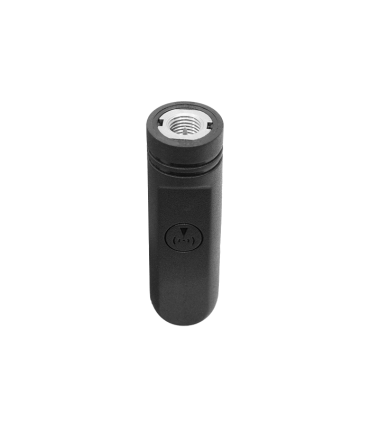

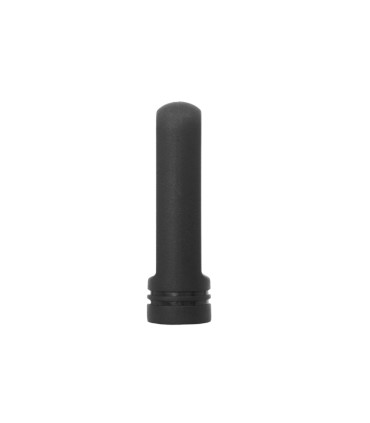

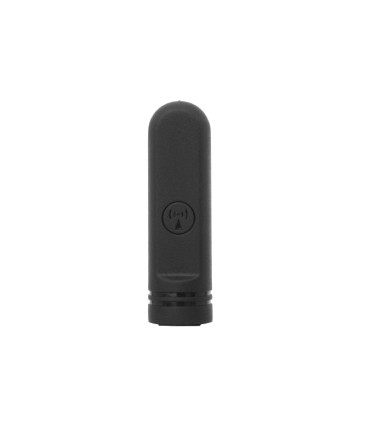

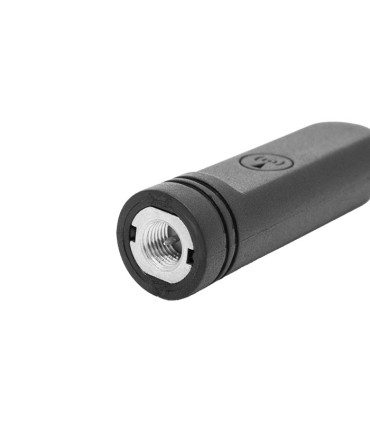

Walkie antenna for LTE band with SMA male connector

Specifications
Electrical Specifications
  • Frequency Range: LTE (800~960/1710~2700MHz)
  • Impedance: 50 Ohm
  • VSWR: ≤4.5/≤2.0
  • Gain: 2dBi
  • Radiation: Omnidirectional
  • Polarization: Vertical
  • Max. Power Input: 20 W
Mechanical Specifications
  • Height: 48±2 mm
  • Radome Material: TPEE
  • Radome Color: Black
  • Antenna Weight: 8±1 g
  • Connector: SMA Male
    (The antenna threads protrude from the skirt with a height of 5.2±0.3 mm)
Read moreShow less
Product Details
LTE-1-SMA-M
