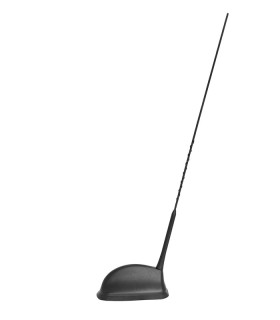

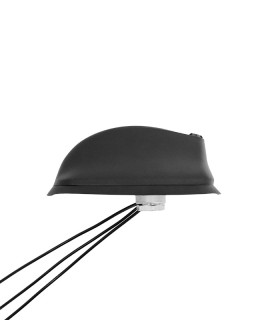

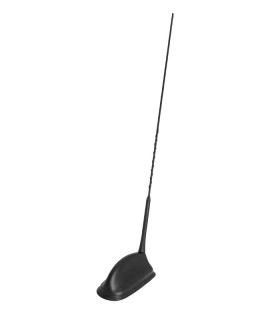

MA-4304

Mobile Antenna LTE / 2.4GHz - 5.8GHz / ACTIVE GPS

Multiband Antenna

LTE / 2.4GHz - 5.8GHz / ACTIVE GPS-GNSS-GALILEO

Read moreShow less
Add to compare0
Add to wishlist
Specifications

Material

Hole - Ranura
Squared: 15x15 mm
Round: Ø 19 mm
Dimension - Dimensión
95 x 52 x 65 mm
Cap Material -Material de recubrimiento
Polyamide 6
Gasket Material - Material de la junta
Black - Negro
IP grade - Rango IP
IP67
Colour - Color
Black - Negro
Weight - Peso
150 ± 20 g
Temperature - Temperatura
-40ºC - +80ºC

Technical Data GPS/GNSS/GALILEO:

Antenna Type - Tipo de antena
Active Planar Patch Ant.
Center Frequency - Rango de Frecuencia
1580 MHz
Bandwidth - Ancho de banda
 ± 28 MHz
V.S.W.R
less than 2.0
Impedance - Impedancia
50 Ω
Polarization - Polarización
RHCP
Supply Voltage - Voltaje de Alimentación
2.7 ÷ 5.1 V
Current Absorption - Absorción de Corriente
10 ± 1 at 2.7 V
16 ± 1 at 5.0 V
Gain Amplifier (mA) - Ganancia del Amplificador
18 ± 1 at 2.7 V
22 ± 1 at 5.0 V
Gain Patch Antenna - Ganancia Antena Patch
2dB
Noise figure - Cifra de ruido
1.7 ÷ 2.1 dBi
Temperature - Temperatura
-30ºC - +85ºC
Cable lenght - Longitud del Cable

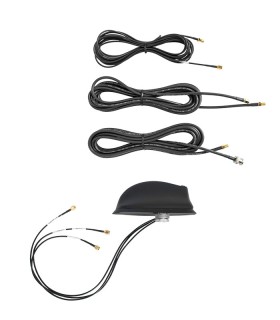

RG 174 mm 18 ± 20mm + extension cable RG-174 (5000mm ± 10)
Connector - Conector
SMA-Male

Technical Data LTE

Antenna Type - Tipo de antena
Directive Antenna
Frequency Range - Rango de Frecuencia
790 ÷ 960 MHz
1710 ÷ 2700 MHz
V.S.W.R
less than 3.3
Impedance - Impedancia
50 Ω
Polarization - Polarización
Vertical
Max. Power - Potencia Máxima
20W
Emission - Emisión
Omnidirectional
Gain - Ganancia
2.14 dB
Cable lenght - Longitud del Cable
RG316 R118 mm.180±20
Connector - Conector
SMA-Male

Technical Data WIFI / Bluetooth 2.4GHz-5.8GHz

Antenna Type - Tipo de antena
1/4 l Mobile Antenna
Frequency Range - Rango de Frecuencia
2400 ÷ 2485 MHz
5250 ÷ 5850 MHz
V.S.W.R
less than 3.0
Impedance - Impedancia
50 Ω
Polarization - Polarización
Vertical
Max. Power - Potencia Máxima
10W
Emission - Emisión
Omnidirectional
Gain - Ganancia
2.14 dB
Cable lenght - Longitud del Cable
RG 174 R118 mm.180±20
Connector - Conector
RP-SMA-Male
For other types of connectors, please consult us.
