MA-4204-1

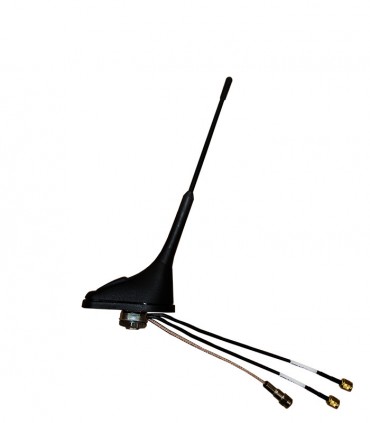

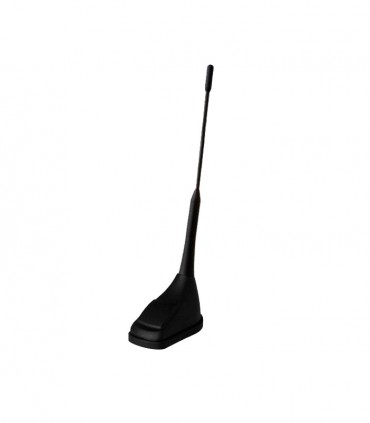

Komunica Multiband professional antenna for mobile use: TETRA (380: 430MHz) + GPS + GSM + UMTS + LTE. Compact size
Multiband professional antenna
TETRA (380: 430MHz) + GPS + GSM + UMTS + LTE
Add to compare0
Add to wishlist
Material
Cap Material - Material de recubrimiento |
Polyamide 6 |
|
Gasket Material - Material de la junta |
Arnitel EM400 |
|
Rod Material - Material de la Varilla |
Moplen + Rubber 50 Sh |
|
Colour - Color |
Black - Negro |
|
Weight - Peso |
180 g |
|
Base Dimension - Dimensión de la Base |
40mm (W) *76mm (L) |
|
Hole - Ranura |
Ø 19 |
|
Temperature - Temperatura |
-30ºC - +80ºC |
GPS / GNSS / GALILEO technical data
Antenna Type - Tipo de antena |
Active Planar Patch Ant. |
|
Center Frequency - Rango de Frecuencia |
1580 MHz |
|
Bandwidth - Ancho de banda |
± 28 MHz |
|
V.S.W.R |
2.0 |
|
Impedance - Impedancia |
50 Ω |
|
Polarization - Polarización |
RHCP |
|
Supply Voltage - Voltaje de Alimentación |
2.7 ÷ 5.1 V |
|
Current Absorption - Absorción de Corriente |
10 ± 1mA at 2.7 V
|
|
Gain Amplifier (mA) - Ganancia del Amplificador |
18 ± 1 dB at 2.7 V
|
|
Gain - Ganancia |
2 dB |
|
Noise figure |
1.7 ÷ 2-1 dB |
|
Temperature - Temperatura |
-30ºC - +80ºC |
|
Cable lenght - Longitud del Cable |
RG 174 mm 210 ± 20 |
|
Connector - Conector |
SMA m |
|
Cable Extension |
RG-174 mm 5000, SMA f./SMA m |
TETRA technical data
Antenna Type - Tipo de antena |
1/4 λ Mobile Antenna VHF |
|
Frequency Range - Rango Frecuencia |
380 ÷ 430 MHz |
|
V.S.W.R |
1.8 |
|
Impedance - Impedancia |
50 Ω |
|
Polarization - Polarización |
Vertical |
|
Emission - Emisión |
Omnidirectional |
|
Gain - Ganancia |
2.14 dBi |
|
Max. Power - Potencia Máxima |
20 W |
|
Rod lenght - Longitud de varilla |
130 ± 15mm |
|
Rod elevation - Ángulo de varilla |
74º |
|
Cable lenght Longitud del Cable |
RG 316 mm 180 ± 20 |
|
Connector - Conector |
BNC m. |
|
Cable extension |
RG-58 mm 5000, FME f. / BNC m |
GSM / UMTS / LTE technical data
Antenna Type - Tipo de antena |
1/4 λ Mobile Antenna |
|
GSM-ETACS-NNT |
824 ÷ 960 MHz |
|
PCN-GSM |
1710 ÷ 1880 MHz |
|
UMTS |
1900 ÷ 2170 MHz |
|
LTE |
698 ÷ 790 MHz1710 ÷ 2700 MHz |
|
Impedance - Impedancia |
50 Ω |
|
V.S.W.R |
Less than 3.3 |
|
Polarization - Polarización |
Vertical |
|
Emission - Emisión |
Omnidirectional |
|
Max Power |
20 W |
|
Rod elevation - Ángulo de varilla |
74º |
|
Cable lenght - Longitud del Cable |
RG 174 mm 130 ± 20 |
|
Connector - Conector |
SMA m. |
|
Cable extension |
RG-58 mm 5000, FME f./SMA m |
For other types of connectors, please consult us.
EAN:8435757703737
