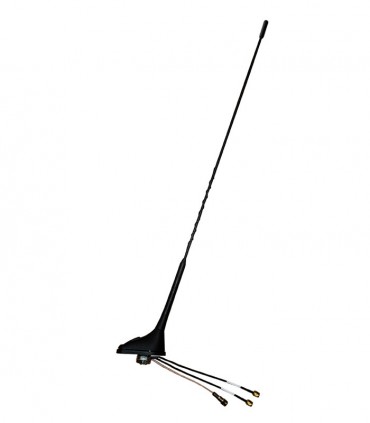

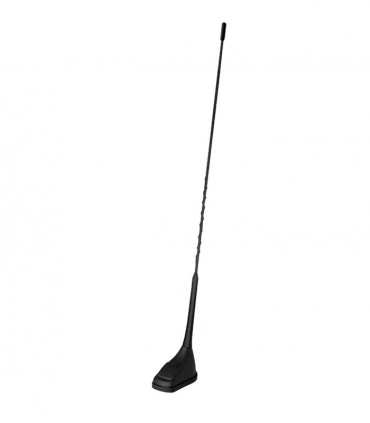

Komunica Mobile Antenna, Multiband: VHF (130 ÷ 230MHz) or TETRA (380 ÷430MHz) + GPS + LTE .

Specifications

• Cap Material: Polyamide 6

• Gasket Material: Arnitel EP 400

• Rod Material: Moplen + Rubber 50 Sh

• Hole: 15x15 mm (Round: Ø 19 mm)

• Base Dimension: 52mm (W) * 95mm (L)

• Color: Black

• Weight: 200g +/- 10g

• Temperature: -40ºC / +80ºC

Technical Data GSM/UMTS/LTE

• Antenna Type: 1/4 λ Mobile Antenna

• GSM-ETACS-NNT: 824 ÷ 960 MHz

• PCN-GSM: 1710 ÷ 1880 MHz

• UMTS: 1900 ÷ 2170 MHz

• LTE: 698 ÷ 790 MHz, 1710 ÷ 2700 MHz

• Impedance: 50 Ω

• V.S.W.R: Less than 2

• Polarization: Vertical

• Emission: Omnidirectional

• Max Power: 10 W

• Rod Elevation: 74º

• Cable Length: RG-58, 5000mm

• Connector: SMA m.

Technical Data GPS/GNSS/GALILEO

• Antenna Type: Active Planar Antenna

• Impedance: 50 Ω

• Center Frequency: 1580 MHz

• Bandwidth: ± 28 MHz

• V.S.W.R: Less than 2.0

• Polarization: RHCP

• Supply Voltage: 2.7 ÷ 5.1 V

• Current Absorption: 10 ± 1mA at 2.7 V, 16 ± 1mA at 5.7 V

• Amplifier Gain: 18 ± 1 at 2.7 V, 22 ± 1 at 5.7 V

• Patch Antenna Gain: 2dB

• Cable Length: RG-174, 5000mm

• Connector: SMA m.

Technical Data Tetra-UHF or VHF, Tunable

• Antenna Type: 1/4 λ Mobile Antenna VHF, 5/8 λ Mobile Antenna UHF

• Frequency Range: 130 ÷ 230 MHz (Tunable), 380 ÷ 500 MHz (Tunable)

• V.S.W.R: Less than 2

• Impedance: 50 Ω

• Polarization: Vertical

• Emission: Omnidirectional

• Gain (VHF): 2.14 dBi

• Gain (UHF): 5 dBi

• Max Power: 20 W

• Rod Length: 500 mm (tunable)

• Rod Elevation: 74º

• Cable Length: RG-58, 5000mm

• Connector: BNC m.

For other types of connectors, please inquire.

EAN:8435757703744
