GAIN MASTER

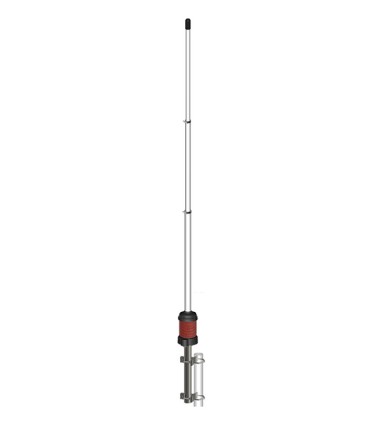

SIRIO - Base Antenna 10-11-12m 5/8 wave, 7,36m
Electrical Data:
Type: |
0.625 λ center feed |
Radiation: |
Omnidirectional |
Polarization: |
Linear vertical |
Frequency range: |
25.5-30 MHz No tuning required |
Systems: |
10m-HAM |
Gain: |
1 to 2 dB higher than conventional 5/8 λ |
Max Power: |
500 Watts (CW) continuous |
Grounding protection: |
DC-Ground |
Connector: |
UHF-female (SO-239) |
Mechanical Data:
Materials: |
Anodized Aluminium, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized |
Height (approx): |
7360 mm / 24.15 ft |
Weight (approx): |
3000 gr / 6.61 lb |
Mounting type: |
On-Mast |
