PWR-SW4M

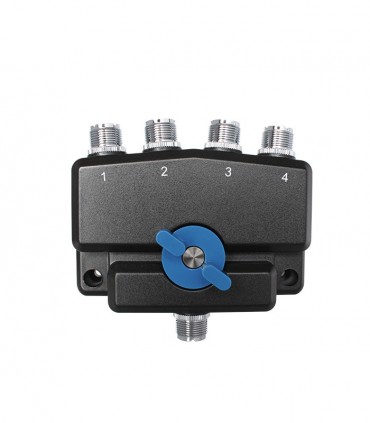

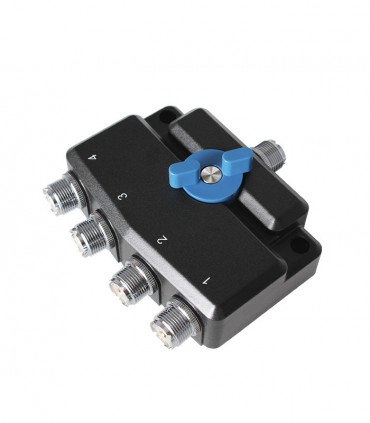

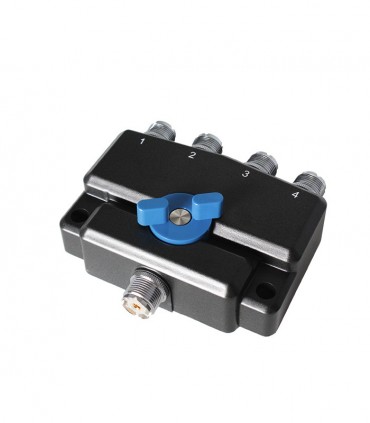

Komunica Coaxial Antenna Switching 4 Positions PL, 900MHz
Frequency Range:
DC~900MHz
Power Range:
Dc~30MHz 1.5KW
30MHz~200MHz 1.0KW
200MHz~500MHz 500W
500MHz~1GHz 150W
Insertion Loss:
Dc~500MHz <=0.10dB
500MH~1GHz <=0.20dB
Output Port 1/2 Isolation:
Dc~500MHz >=60dB
500MH~1GHz >=55dB
VSWR:
Dc~500MHz <=1.10
500MH~1GHz <=1.25
Connector Type:
Input Port 1 PL-259
Out Port 4 PL-259
EAN:8435757707759
