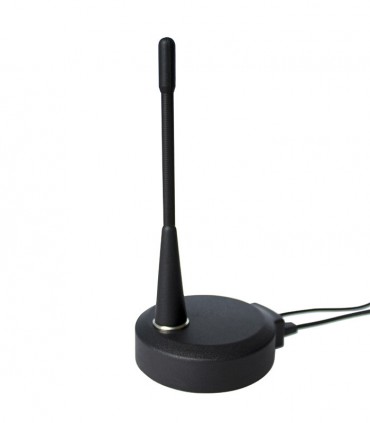

Komunica professional combined antenna of magnetic type for the VHF + GPS Adjustment in VHF by diagram by cutting
Specification:
-
Base Dimension: Ø73x22 mm
-
Coating Material: Polyamide 6
-
Base Material: Zamac
-
Color: Black
-
Mounting: Magnetic
-
Temperature: -40ºC · +80ºC
GPS Technical Data
-
Antenna Type: Active Planar Patch Ant.
-
Impedance: 50 Ω
-
Frequency Range: 1575.42 MHz
-
Bandwidth: ±1.023 MHz
-
V.S.W.R: Less than 2.0
-
Polarization: RHCP
-
Supply Voltage: 2.7 ÷ 5.1
-
Current Consumption: 12 ± 2mA at 2.7 V, 26 ± 2mA at 5.1 V
-
Amp Gain: 24 ± 2dB at 2.7 V, 26 ± 2dB at 5.1 V
-
Patch Antenna Gain: 4.5 typ
-
Noiase Figure: 1.7 ÷ 2.1 dBi
-
Temperature: -40ºC ÷ +85ºC
-
Cable Length: RG 174 mm. 2500± 20
-
Connector: SMA m.
TETRA / UHF Technical Data
-
Antenna Type: 1/4 mobile antenna
-
Impedance: 50 Ω
-
Frequency Range: 380÷470 MHz
-
Band: 30 MHz
-
Max Power: 25W
-
V.S.W.R: Less than 1.5
-
Polarization: Vertical
-
Emission: Omnidirectional
-
Gain: 2.14 dBi
-
Rod Length: 135±10 mm
-
Rod Section: 1 mm
-
Cable Length: RG 174 mm. 2500 ± 20
-
Connector: BNC m.
For other types of connectors, please consult.
EAN:8435757703775
