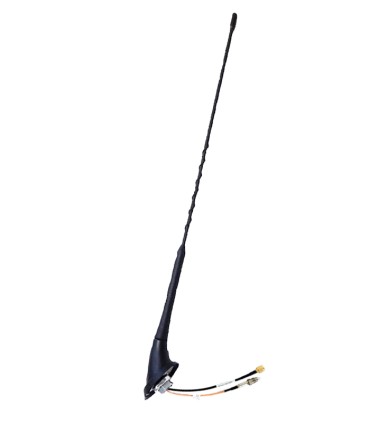

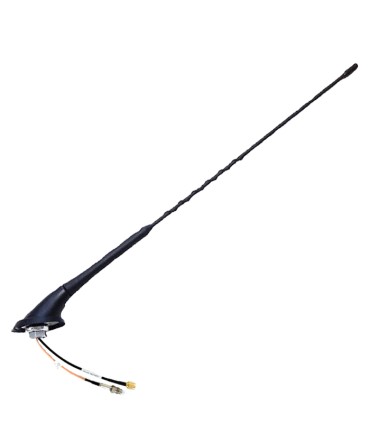

Mobile antenna 5/8, TETRA + GPS with 28º, 5m cable
Add to compare0
Add to wishlist
Specifications
-
Cap Material: Polyamide
-
Gasket Material: Arnitel EP
-
Rod Material: Pibiflex 2564
-
Base Dimension: 45mm
-
Length: 60mm
-
Hole: Squared 15x15 mm
-
Round: Ø 19 mm
-
Color: Black
-
Temperature: -40ºC - +80ºC
Technical Data GPS
-
Antenna Type: Active Planar Patch Ant.
-
Center Frequency: 1575 & 1600 MHz
-
Bandwidth: 10 MHz
-
V.S.W.R: Less than 2.0
-
Impedance: 50 Ω
-
Polarization: RHCP
-
Supply Voltage: 2.7 ÷ 5 V
-
Gain: 17 ± 2
-
Noise figure: < 1.5
-
Temperature: -30ºC - +80ºC
-
Cable Length: RG 178 mm. 250 ± 20
-
Connector: SMA m.
-
Extension Cable: RG174 mm 5000 SMA f. / SMA m.
Technical Data 380-430 MHz/TETRA/UHF
-
Antenna Type: 5/8 λ Mobile Antenna
-
Frequency Range: 380÷430 MHz
-
Impedance: 50 Ω
-
Max. Power: 20 W
-
V.S.W.R: Less than 2.5
-
Polarization: Vertical
-
Emission: Omnidirectional
-
Gain: 2.14 dB
-
Rod Length: 480 mm
-
Rod Section: 1 mm
-
Rod Elevation: 28º
-
Cable Length: RG-174 mm. 250±20
-
Connector: BNC m.
-
Extension Cable: RG-58, 5000mm (FME m. / BNC m.)
For other types of connectors, please consult us.
EAN:8435757703621
