PWR-6500-PD605

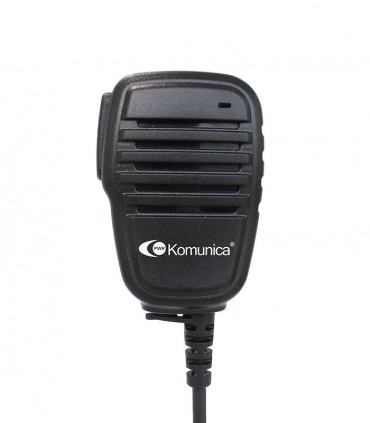

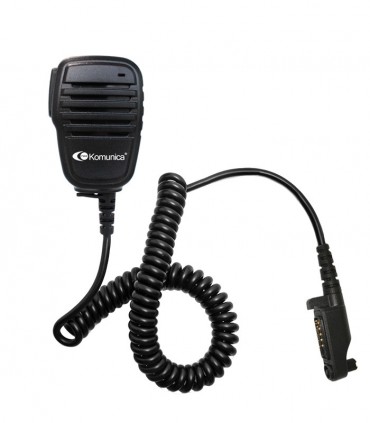

Komunica, Speaker-Microphone, Compact Size, Compatible Hytera series PD-605/665/685, HP-605,etc

Compatible Hytera series:

PD-600, PD-602, PD-605, PD-606, PD-665, PD-666, PD-685, PD-686, TC700-P / TC-780, Digital X1p, X1e, Z1p.

PDC550,  PDC680, PDM680, PTC680, PT-590

HP505, HP565, HP605, HP685, HP705, HP785, HP9xx

HP-605, etc

Multi Pin conector (13 contacts)

Read moreShow less
Add to compare0
Add to wishlist
Specifications
  • Speaker-Microphone compact size

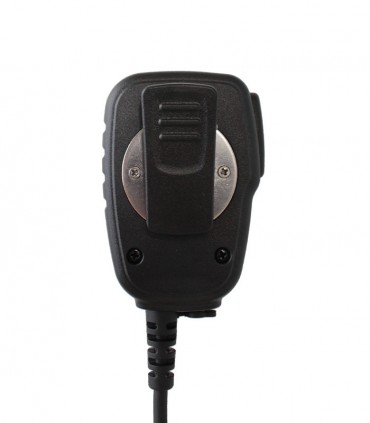

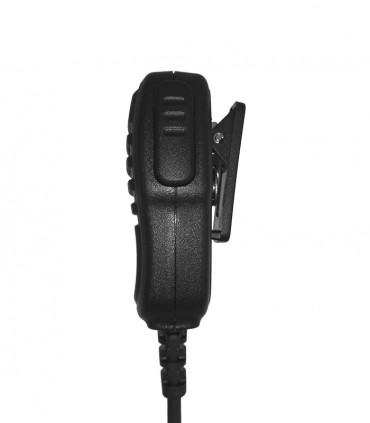

  • Revolving Metal Clip
  • einforced Cable
  • Connector 3.5mm for external earphone
  • Level IP: IPX4
Multi Pin connector (13 contact points)
Features
  • High quality microphone and speaker provides an excellent communication
  • "Revolving" metal clip
  • 3.5mm audio socket
  • Operating Temp: -20ºC±2ºC ~50ºC±2ºC
  • Approx. Weight: 110g
  • IP Rating: IPX4
Microphone
  • Type: Condenser
  • Dimension: ф6.0 x 5.00 mm
  • Output Impedance: 2KΩ±10%        f=1KHz
  • Sensitivity: -44dB±3                      0dB=1v/Pa, 1KHz
  • Frequency Range: 50Hz~20KHz
  • Directivity: Omni-direcional
  • Operation Voltage: standard voltage 3V, max operation voltage 10V
  • S/N Ratio: 58dB                            @f=1KHz, Pin=1Pa
Speaker
  • Speaker Dimensions: ф36*7.3 mm
  • Impedance: 4Ω±15%                    1.2KHz/1.0V
  • Rated Input Power: 1W
  • Max. Input Power: 1.5W
  • Output S.P.L: 102dB±3(0.1M 1W)   Average at 1K, 1.2K, 1.5K, 2.0KHz
  • Frequency Response : FO~6KHz     Average SPL-10dB
  • Distortion: 5% Max                        1KHz/1W

EAN:8435757705816

Read moreShow less
Product Details
PWR-6500-PD605

Data sheet

Compatible con:
HYTERA

Specific References

ean13
8435757705816
