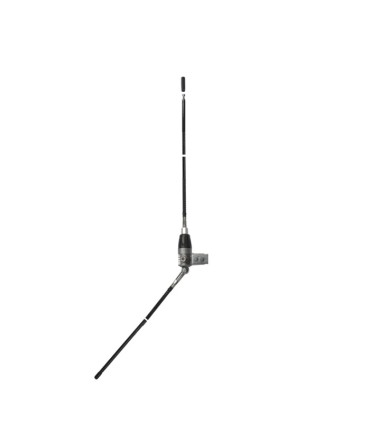

BOOMERANG-27-W
SIRIO - CB BALCONI ANTENNA 3,5 M FIBER
Type: 1/4 λ ground plane boomerang
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.8 ... 27.6 MHz Tunable
Systems: 10m-HAM
Gain: 0 dBd, 2.15 dBi
Bandwidth: ≥ 800KHz @ SWR ≤ 2
Max Power: 300 Watts (CW) continuous 900 Watts (CW) short time
Connector: UHF-female (SO-239)
Materials: Aluminium, Copper, Galvanized steel, Fiberglass, Nylon
Height (approx): 2180 mm / 7.15 ft
Weight (approx): 750 gr / 1.65 lb
Mounting type: On-Mast
