SIRIO-827

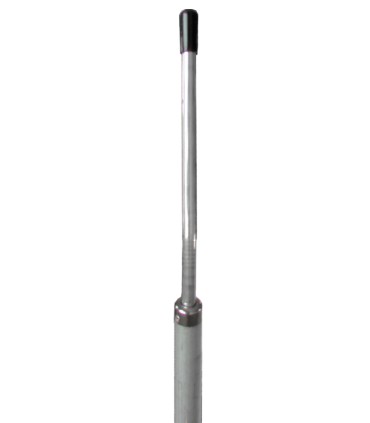

SIRIO Base CB 26.4-28.4 Mhz aluminium antenna + Radials
SIRIO Base CB 26.4-28.4 Mhz aluminium antenna + Radials
Add to compare0
Add to wishlist
Electric Data:
-
Type: 5/8 ground plane
-
Frequency Range: 26 - 29 MHz
-
Gain: 1.5 dBd, 3.65 dBi
-
Bandwidth S.0000000.........W.R. 2:1: 2000 KHz (180 CH)
-
S.W.R. centro banda : = 1.1:10
-
Factory adjusted at the center of the band
-
Impedance: 50 Ohm, unbalanced
-
Low radiation angle for DX
-
Polarization: Vertical
-
Radiation (plano horizontal): 360° omnidireccional
-
Capacity to emit at high power 3000 Watt.
-
Radiant joints with anti-humidity sleeves
-
Made of aluminum alloy 6063 T-832
-
Anti-static protection (cortocircuitada)
-
Max. Power: 1KW TX - 3KW TRX
-

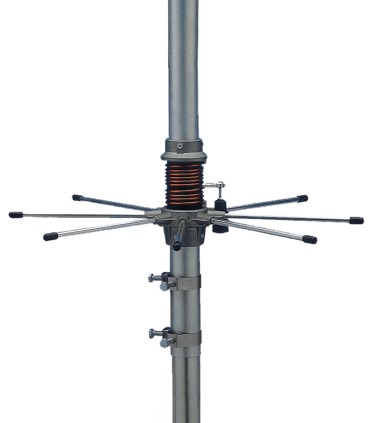

Transformer DC-ground / imp. at the base
-
Connector: UHF-female SO239 PL
Mecanic Data:
-
Materials: Aluminium, Copper, Steel, Nylon
-
Wind resistance: 264 N at 150 Km/h / 130 Km/h
-
Friction surface: 0.23 m²
-
Length (aprox.): 6700 mm
-
Weight(aprox.): 6000 gr
-
Longitud radial(aprox.): 1400 mm
-
Mast diameter Ø 35-39 mm
-

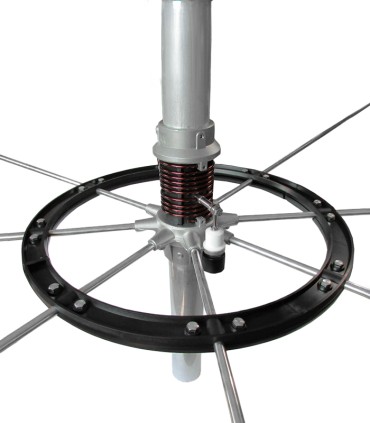

Optional reinforcement ring for radials (AR827)
15 other products in the same category:
SIRIO Gain-Master-HW 1/2 wave, 5.50m long
Antenna CB Base, Whip Fiberglass, Total 7,35m, 5000WConnector: UHF-Female
Remember to improve the performance of your MAX-2000 by adding the optional IMAX-GPK ground plane
The Ultimate Optimizable 10-11 Meter Base Station Antenna 5000 Watt RatedNEW! Upgraded replacement for IMAX-2000 antenna
Remember to improve the performance of your antenna MAX-OPTIMIZED by adding the optional IMAX-GPK ground plane
SIRIO - Base Antenna 10-11-12m 5/8 wave, 7,36m
CB Base antenna, made in fiber-glass.
Frequency: 22-30MHz
Type: 1/2 wave
Length: 5270mm / 207.48 inches
Packaging measurements: 1,85*0,10*0,85m
Packaging weight: 3 kg
Replacement Optimizer Extension Section.
Use for :MAX-OPTIMIZER
Ground radial kit for antennas Max-2000 & Max-Optimizer.
Lowers angle of radiation for greater range. Comes with mounting bracket, four 6 ft fiberglass radials mounting hardware.
Improve the performance of your MAX-2000 & MAX-OPTIMIZER by adding the optional IMAX-GPK ground plane.

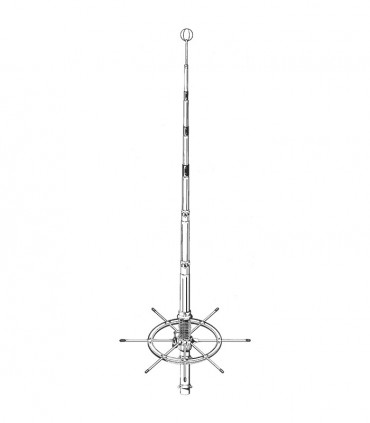

SIRIO Ant.Base CB+radials+aro (Evoluc Sriro-827)
