GAIN MASTER HW

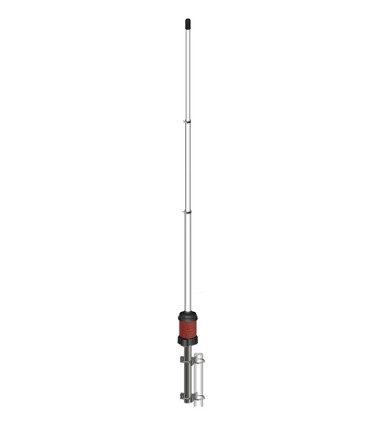

SIRIO Gain-Master-HW antenna, 1/2 wave, 5.50m length
Electrical Data:
Type: |
1/2 λ center feed |
Radiation: |
Omnidirectional |
Polarization: |
Linear vertical |
Frequency range: |
27.2 ... 30 MHz Tunable |
Systems: |
10m-HAM |
Gain: |
0 dBd - 2.15 dBi |
Bandwidth: |
≥ 1.8MHz @ SWR ≤ 2 |
Max Power: |
500 W (CW) |
Connector: |
UHF-female (SO-239) |
Mechanical Data:
Materials: |
Anodized Aluminium, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized |
Height (approx): |
5560 mm / 18.24 ft |
Weight (approx): |
2600 gr / 5.73 lb |
Mounting type: |
On-Mast |
