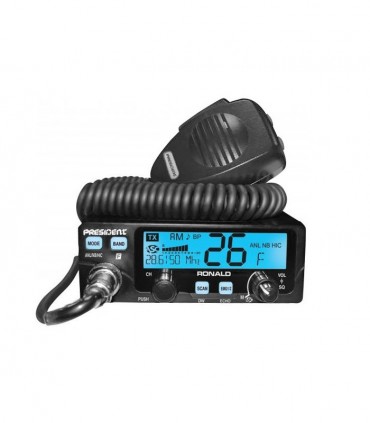

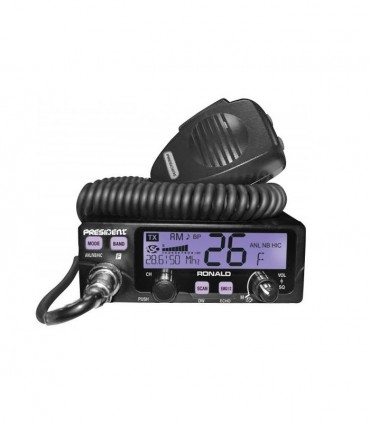

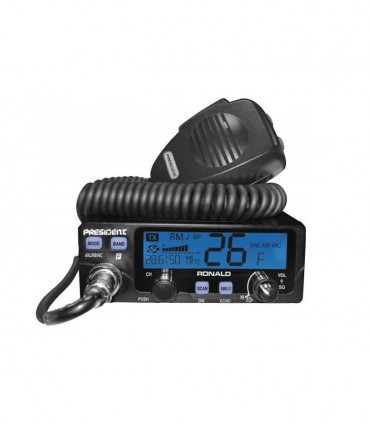

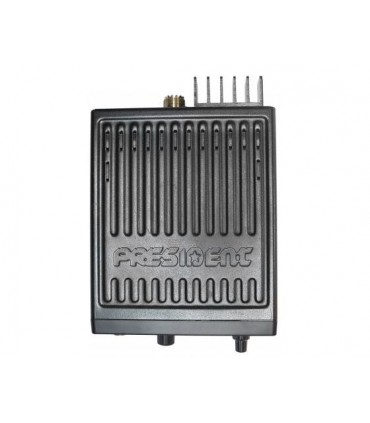

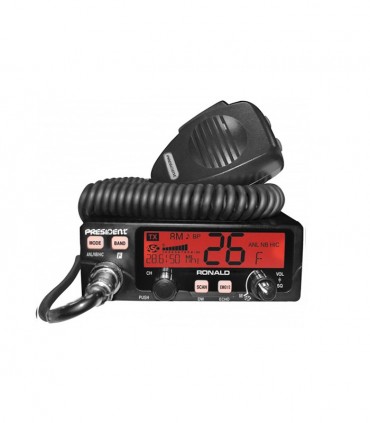

RONALD-ASC
PRESIDENT transceivers CB (10-12mts HAM-RADIO - AM/FM)
Technical characteristics
Modulation modes |
AM / FM |
|
Frequency ranges |
from 28.000 MHz to 29.700 MHz |
|
Antenna impedance |
50 ohms |
|
Power supply |
12 V |
|
Size |
125 (W) x 175 (D) x 45 (H) mm |
|
Weight |
0,9 kg |
|
Accessories supplied |
power cord with fuse1 microphone UP/DOWN and its hanger1 mounting bracket with fixing screws |
Transmission
Frequency allowance |
+/- 300 Hz |
|
Carrier power |
13 W AM (50 W PEP) / 35 W FM |
|
Transmission interference |
inferior to - 50 dBm |
|
Audio response |
300 Hz to 3 KHz in AM/FM |
|
Emitted power in the adj. channel |
inferior to 20 µW |
|
Microphone sensitivity |
3,0 mV |
|
Drain |
7 A max. (with modulation) |
|
Modulated signal distortion |
2% |
Reception
Maxi. sensitivity at 20 dB sinad |
0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM) |
|
Frequency response |
300 Hz to 3 kHz in AM/FM |
|
Adjacent channel selectivity |
60 dB |
|
Maximum audio power |
3 W |
|
Squelch sensitivity |
minimum : 0.2 μV - 120 dBm / maximum : 1 mV - 47 dBm |
|
Frequency image rejection rate |
60 dB |
|
Intermediate frequency rej. rate |
70 dB |
|
Drain |
500 mA max |
