The Ultimate Optimizable 10-11 Meter Base Station Antenna 5000 Watt RatedNEW! Upgraded replacement for IMAX-2000 antenna
Remember to improve the performance of your antenna MAX-OPTIMIZED by adding the optional IMAX-GPK ground plane
BILL-II +

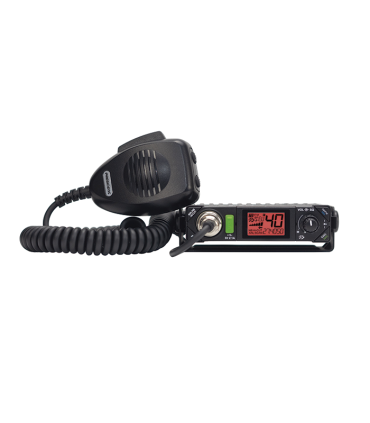

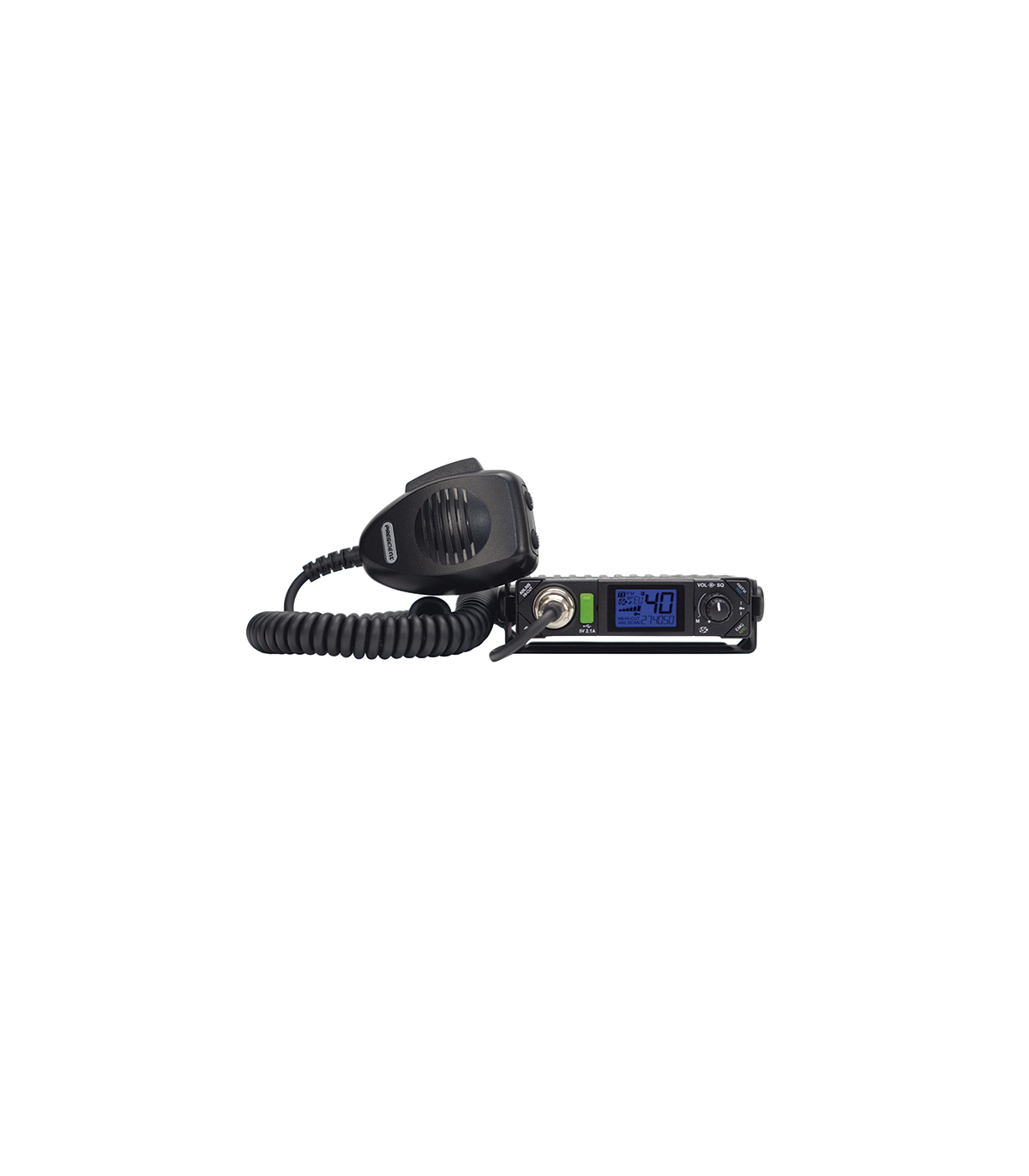

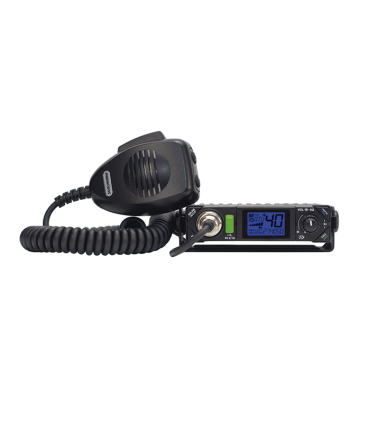

President CB radio 40 channels AM/FM VOX simply compact
President BILL-II + mobile transceiver, super-compact equipment
-
Tamaño (mm): 102 (ancho) x 100 (fondo) x 25 (alto)
-
Alimentación: 12 V
-
Modos: AM / FM
-
Canales: Canales P
-
Escaneo: Escaneo de canales / Salto (Skip)
-
Filtros: ANL / NB / HI-CUT
-
NRC: Circuito de Reducción de Ruido
Display Colours:
Add to compare0
Add to wishlist
Technical Specifications
Number of channels: 40
Modulation modes: AM / FM
Frequency range: 26.965 MHz to 27.405 MHz
Impedance: 50 ohms
Power supply: 13.2 V
Dimensions: 102 (W) x 100 (D) x 25 (H) mm
Weight: 320 g
Included accessories:
-
1 microphone with UP/DOWN buttons and its holder
-
1 mounting bracket with fixing screws
-
1 quick-release bracket
Transmission
Frequency tolerance: ±200 Hz
Carrier power: 4 W
Transmission spurious emissions: less than 4 nW (-54 dBm)
Audio response: 300 Hz to 3 kHz
Adjacent channel power: less than 20 μW
Microphone sensitivity: 7 mV
Current consumption: 1.7 A at 13.2 V
Modulated signal distortion: 2%
Reception
Maximum sensitivity at 20 dB SINAD: 0.5 µV (-113 dBm) in AM / 0.35 µV (-116 dBm) in FM
Frequency response: 300 Hz to 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio output power: 2.5 W
Squelch sensitivity: minimum 0.2 μV (-120 dBm) / maximum 1 mV (-47 dBm)
Image frequency rejection: 60 dB
Intermediate frequency rejection: 70 dB
Current consumption: 180 to 500 mA (at 13.2 V)
