MA-4202-2

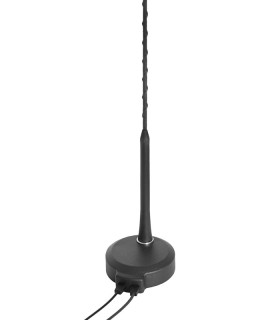

Antenna VHF-TETRA-UHF (Cutting DIagram) + GPS-GNSS-GALILEO, 5mt

Professional Multiband Antenna:

130 ÷ 230MHz (Cutting Diagram)

or

380 ÷ 470 MHz (Cutting Diagram)

+ GPS-GNSS-GALILEO

More details

New product

More info

Material

Cap Material - Material de recubrimiento
Polyamide 6
Gasket Material - Material de la junta
Arnitel EM 400
Rod Material - Material de la Varilla
Pibiflex 2564 (fiber glass)
Colour - Color
Black - Negro
Weight - Peso
180 g
Base Dimension - Dimensión de la Base
52mm (W)
Hole - Ranura
Squared: 15x15
Round Ø 19
Temperature - Temperatura
-30ºC - +80ºC

Technical Data: VHF/TETRA/UHF

Antenna Type - Tipo de antena
VHF: 1/4 1 Mobile Antenna
UHF: 5/8 1 Mobile Antenna
Frequency Range - Rango Frecuencia
VHF: 130 ÷ 230MHz (Cutting Diagram)
TETRA/UHF:  380 ÷ 470 MHz (Cutting Diagram)
V.S.W.R
less than 2.2 (VHF) & 1.5 (UHF)
Impedance - Impedancia
50 Ω
Polarization - Polarización
Vertical
Emission - Emisión
Omnidirectional
Gain - Ganancia
5 dBi (UHF) & 2.14dBi (VHF)
Cable lenght - Longitud del Cable
RG-316 mm210 ± 20mm + extension of cable RG-58 (5000mm ± 10)
Connector - Conector
BNC m.

Technical Data GPS:

Antenna Type - Tipo de antena
Active Planar Patch Ant.
Center Frequency - Rango de Frecuencia
1580 MHz
Bandwidth - Ancho de banda
 ± 28MHz
V.S.W.R
less than 2.0
Impedance - Impedancia
50 Ω
Polarization - Polarización
RHCP
Supply Voltage - Voltaje de Alimentación
2.7 ÷ 5.1V
Current Absorption - Absorción de Corriente
10 ÷ 30 mA
Gain Amplifier (mA) - Ganancia del Amplificador
12 ± 1dB a 2.7V
Noise figure
1.7 ÷ 2.1 dB
Temperature - Temperatura
-30ºC - +80ºC
Cable lenght - Longitud del Cable
RG 174 mm 18 ± 20mm + extension cable RG-174 (5000mm ± 10)
Connector - Conector
SMA m

For other types of connectors, please consult us.
