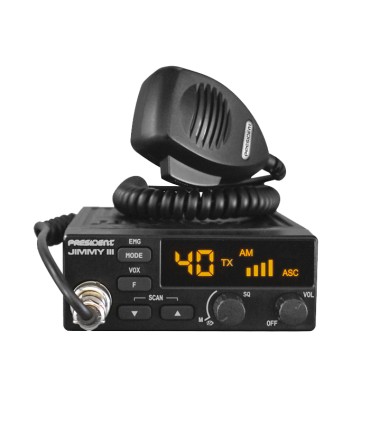

JIMMY-III
PRESIDENT CB radio, 40 channels ASC, AM/FM
New CB PRESIDENT radio, with 40 channels ASC, AM/FM
Add to compare0
Add to wishlist
Technical Characteristics
Channels |
: |
40 |
Modulation Modes |
: |
AM/FM |
Frequency Range |
: |
26.965 MHz to 27.405 MHz |
Antenna Impedance |
: |
50 ohms |
Power Supply |
: |
13.2V |
Dimensions |
: |
115 (W) x 130 (D) x 45 (H) |
Weight |
: |
0.560 kg |
Transmission
Frequency allowance |
: |
+/- 300 Hz |
Carrier Power |
: |
4 W |
Transmission interference |
: |
<4nW (-54dBm) |
Audio Response |
: |
300 Hz to 3Khz |
Emitted power in the adj. channel |
: |
<20µW |
Microphone Sensitivity |
: |
3 mV |
Max.drain |
: |
<2A(13.2V) |
Modul . signal distortion |
: |
2 % |
Reception
Max. Sensitivity
|
: |
0.5 μV - 113 dBm AM
|
Frequency Response |
: |
300 Hz to 3 kHz |
Adj. Channel selectivity |
: |
60 dB |
Max. Audio Power |
: |
3 W |
Squelch Sensitivity |
: |
min. 0.2 μV - 120 dBm
|
Image Frequency
|
: |
60 dB |
Intermediate Frequency
|
: |
70 dB |
