MA-4303

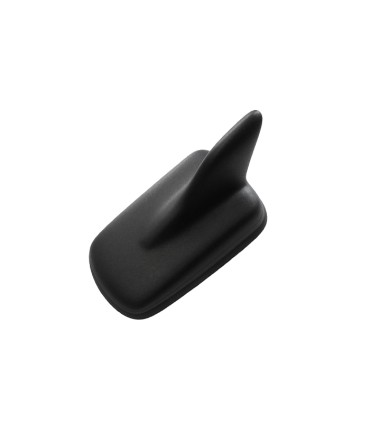

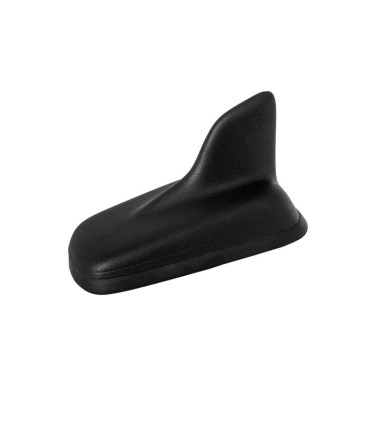

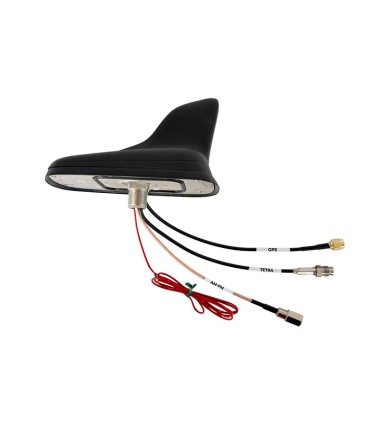

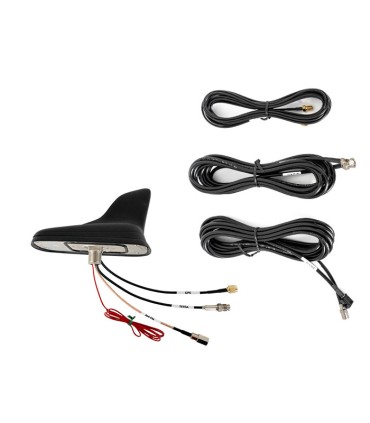

Komunica Multiband Antenna: Tetra 380 ÷ 410 MHz + ACTIVE GPS / GNSS / GALILEO + AM-FM
Komunica Multiband Antenna: Tetra 380 ÷ 410 MHz + ACTIVE GPS / GNSS / GALILEO + AM-FM
Add to compare0
Add to wishlist
Specifications
Material de recubrimiento: PA6 Gasket Arnitel TL 380
Color: Negro
Peso Neto: 270 g
Dimensión: 145*70*70 mm
Temperatura: -40ºC - +80ºC
Technical Data AW - FM
Antenna Type: omnidirectional
Frequency Range: FM 76 – 110 MHz AM 0.15 – 3.5 MHz
Voltaje: 12 V 25-40 mA
Gain: AM: 7 dBi FM: 14dBi
Current Absorption: 27÷40 mA
Noise figure: < 4.5 dB

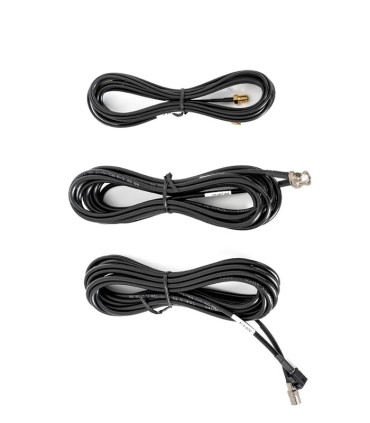

Cable: RG-58, cable extension 5m
Connector: FAKRA black -Male.
Technical Data 400 MHz TETRA
Antenna Type: omnidirectional 1/2 wave
Frequency Range: 380 ÷ 410 MHz
Impedance: 50 Ω
Max. Power: 50W
Center frequency SWR: < 2
Polarization: Vertical
Emission: Omnidirectional
Gain: >3.5 dBi
Cable: RG-58, cable extension 5m.
Conector: BNC male
Technical Data GPS/GNSS/GALILEO
Antenna Type: Active Planar Patch Ant.
Center Frequency: 1580 MHz
Band width: ± 28 MHz
V.S.W.R: Less than 2.0
Impedance: 50 Ω
Polarization: RHCP
Supply Voltage: 2.7 ÷ 5.1V
Current Absorption: 13 ± 2 mA at 3.0 V
Gain Amplifier: 26 ± 3 at 3.0 V
Gain Patch Antenna: 1 dB
Noise figure: < 1.5 dB
Temperature: -30ºC ÷ +80ºC
Cable: RG-174, cable extension 5m
Conector: SMA male
For other connector, please ask for
EAN:8435757703751
