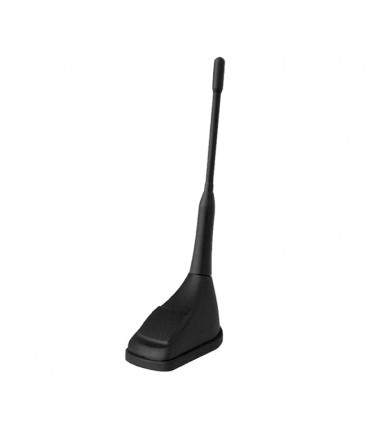

MA-4203-1
TETRA-UHF professional antenna (380-430MHz) + GPS + AM/FM for vehicle installation. Includes 5mt cable hoses.
Professional mobile antenna
Band Coverage: TETRA/UHF (380-430MHz) + GPS/GNSS/GALILEO + AM/FM.
Includes 3 extensions of coaxial cables x 5m
Add to compare0
Add to wishlist
Specifications
Cap Material - Material de recubrimiento: Polyamide 6
Gasket Material - Material de la junta: Arnitel EM400
Rod Material - Material de la Varilla: Pibiflex 2564
Colour - Color: Black - Negro
Net Weight: Peso Neto: 230 g
Base Dimension - Dimensión de la Base: 95mm (L) · 52mm (W)
Mounting Hole - RanuraSquared: 15x15 mm
Round: Ø 19 mm
Temperature - Temperatura: -30ºC - +80ºC
Technical Data TETRA
Antenna Type - Tipo de antena: 1/4 λ Mobile Antenna
Frequency Range - Rango de Frecuencia: 380÷430 MHz
Impedance - Impedancia: 50 Ω
Max. Power - Potencia Máxima: 20W
V.S.W.R: Less than 1.8
Polarization - Polarización: Vertical
Emission - Emisión: Omnidirectional
Gain - Ganancia: 2.14 dBi
Rod lenght - Longitud de varilla: 131 ± 5 mm
Rod Section - Sección de varilla: 1 mm
Rod elevation - Ángulo de varilla: 74º
Cable lenght - Longitud del Cable: RG 316 mm 150 ± 20 + cable extension RG-58 (5m)
Connector - Conector: BNC m.
Technical Data AM-FM
Antenna Type - Tipo de antena: AM-FM Antenna
Frequency Range - Rango de Frecuencia:
LMK : 150KHz÷1.6MHz
UKW: 85MHz÷110MHz
Impedance - Impedancia: 75÷150 Ω
Voltage (V) - Voltaje: 10÷16
Polarization - Polarización: Vertical
Emission - Emisión: Omnidirectional
Gain - Ganancia
LMK: 4 dB
UKW: 9 dB
Current Absorption - Absorción de Corriente: 27÷40 mA
Noise figure - Cifra de ruido: < 4.5 dB
Cable lenght - Longitud del Cable: RG 174mm 130 ± 20 + cable extension RG-174 (5m)
Connector - Conector: SCREW SYSTEM M.
Technical Data GPS/GNSS/GALILEO
Antenna Type - Tipo de antena: Active Planar Patch Ant.
Center Frequency - Rango de Frecuencia: 1580 MHz
Bandwidth - Ancho de banda: ± 28 MHz
V.S.W.RLess than 2.0
Impedance - Impedancia: 50 Ω
Polarization - Polarización: RHCP
Supply Voltage - Voltaje de Alimentación: 2.7 ÷ 5.1V
Current Absorption - Absorción de Corriente:
10 ± 1 mA at 2.7 V
16 ± 1 mA at 5.0 V
Gain Amplifier - Ganancia del Amplificador:
18 ± 1 dB at 2.7 V
22 ± 1 dB at 5.0 V
Gain Patch Antenna - Ganancia Antena Patch: 2 dB
Noise figure - Cifra de ruido: 1.7 ÷ 2.1 dB
Temperature - Temperatura: -30ºC ÷ +80ºC
Cable lenght - Longitud del Cable: RG 174mm 180 ± 20mm + cable extension RG-174 (5m)
Connector - Conector: SMA m.
For other types of connectors, please consult us.
EAN:8435757703706
16 other products in the same category:
Mobile antenna 5/8, TETRA + GPS with 28º, 5m cable

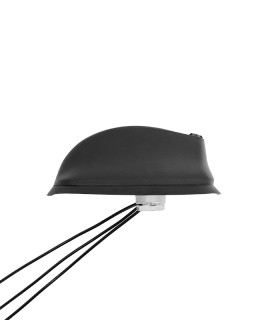

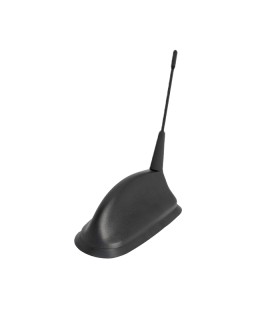

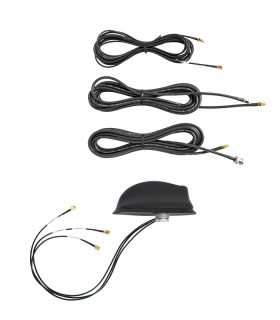

Multiband Antenna
