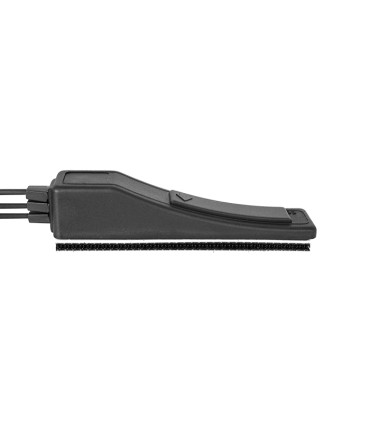

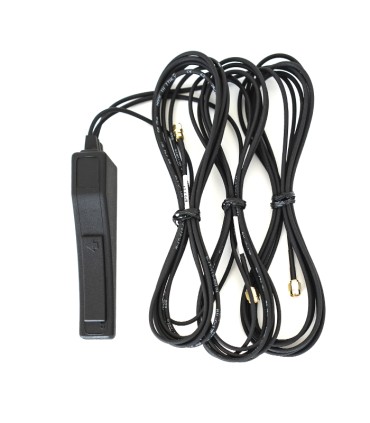

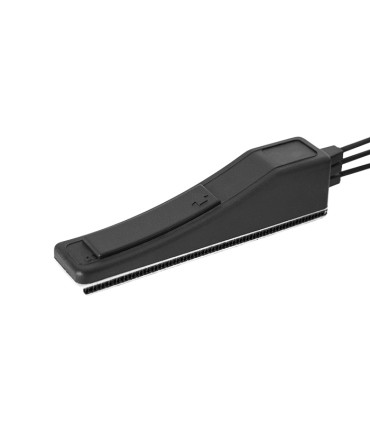

LPM-005

Planar antenna stick-on GPS / 5G / WLAN

Specifications

Specifications

Mounting: Adhesive

Base Dimension: L: 123 · W:25 · H: 27 mm

Material: Polyamide 6

Colour: Black

Temperature: -30ºC - +80ºC

Technical Data WIRELESS LAN

Antenna Type: Dipole Antenna

Frequency Range: 2400 ÷ 2485 MHz

Impedance: 50 Ω

Max. Power: 10 W

V.S.W.R.: Less than 2.5

Polarization: Horizontal or Vertical

Emission: Omnidirectional

Gain: 3.40 dBi

Cable lenght: RG 174 mm.3000±20

Connector: RP-SMA male

Technical Data 5G

Antenna Type: 1/4 1 Mobile Antenna

ISM: 868 MHz

GSM: 900 MHz

DCS: 1800 MHz

PCS: 1900 MHz

3G: UMTS 2.1 GHz

WIFI / BLUETOOTH: 2.4 GHz

LTE: 698-860/2500-2710 MHz

5G: 3400-3800 MHz

Impedance: 50 Ω

Max. Power: 10 W

Return loss: > 12 dB

V.S.W.R: Less than 2.0

V.S.W.R 5G: Less than 3.0

Polarization: Horizontal or Vertical

Emission: Omnidirectional

Gain: 2.14 dBi

Cable lenght: RG 174 mm.3000±20

Connector: SMA m.

Technical Data GPS

Antenna Type: Active Planar Patch Ant.

Impedance: 50 Ω

Center Frequency: 1575 & 1600 MHz

Bandwidth: ± 10 MHz

V.S.W.R: Less than 2.0

Polarization: RHCP

Supply Voltage: 3 ÷ 5 V

Current Absorption: 10 ÷ 30 mA

Power gain: 17 ± 2 dB

Noise figure: < 1.5 dB

Temperature: -30ºC - +80ºC

Cable lenght: RG 174 mm. 3000±20

Connector: SMC male

EAN:8435757703324
